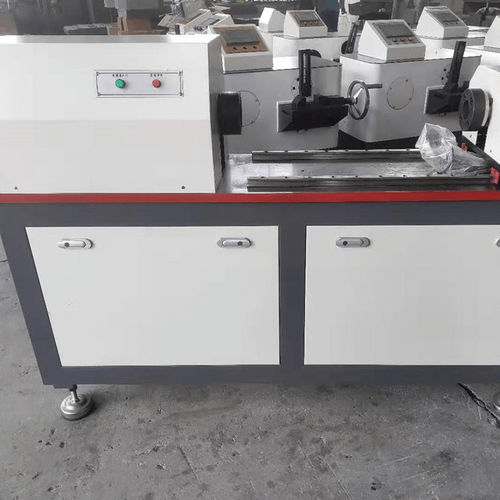

Torsion testing machine NDS-500

computer-controlledfor tubesfor wire

NDW-500Nm Computer control TorsionTesting Machine is designed for conducting torsion and twist tests on various métal wires, tubes and Steel materials. Torque measurement is by torque transducer while angle of twist is measured by photoelectrical coder.Torque range can be adjusted and torque is applied to specimen by servo motor and cycloid speed reducer. This tester is mainly applied in the research department, ail kinds of institutions and industrial and mining enterprises material experiment of various materials used for measuring the mechanical properties by torsion. Product Structure 1.Main machine: horizontal structure, the main structure adopts the overall thickened Steel plate structure to ensure the rigidity of the vvhole machine; the clamp adopts high-quality carbon Steel 45 is quenched (HR50-60) and has a long service life; the installation and disassembty of the sample is convenient and fast. 2.Drive System: full digital control System drive; adjustable speed adjustment, even and stable loading. 3.Transmission System: It adopts précision reducer to ensure the uniformity, stability and précision of transmission. Horizontal space 0 ~ 500mm Adjust freely within the enclosure. 4.Measurement and display System: the machine uses a large-screen liquid crystal display System to simultaneously display the torque T, torsion angle 0, and test speed of the sample.
