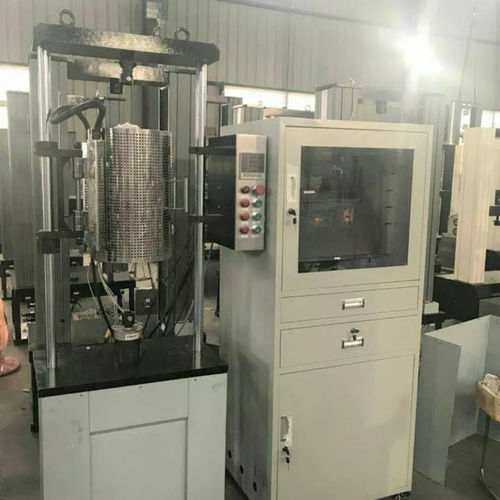

High-temperature testing machine RC-1150A

compressiontensilebending

CYRC-1150A (Mechanical) High Température Endurance Strength Testing Machine can be used for creep, stress relaxation, tensile, compression, bending, shear, peel, tear and other tests of non-metallic materials. Standards 1.JB/T9373-1999 "Technical Conditions of Tensile Creep Testing Machine" 2.JJG276 "High température creep and endurance testing machine" 3.GB/2611-92 "General Technical Requirements for Testing Machines" 4.GB/T16825.2-2001 "Inspection of Force Applied by Tensile Creep Testing Machine" 5.GB/T2039-1997 "Métal tensile creep and endurance test method" 6.HB5151-1996 "Métal High Température Tensile Creep Test Method" 7.HB5150-1996 "Métal High Température Tensile Durability Test Method" Technical Features The newly designed test machine adopts the current international and domestic advanced electrical components, which makes the electrical control action sensitive and the signal sent by the indicating device more accurate. The 50KN mechanical first-level lever loading transmission System adopts high-precision bail screws, and the pull rod moves up and down more flexibly, which overcomes the left and right twisting of the pull rod caused by the screw gap when the motor rotâtes, ensuring the measurement accuracy of the creep test, and the screw rises And the speed of falling can be adjusted by the software to the motor by frequency conversion according to the needs of the user, and is equipped with a two-level electrical limit device.
