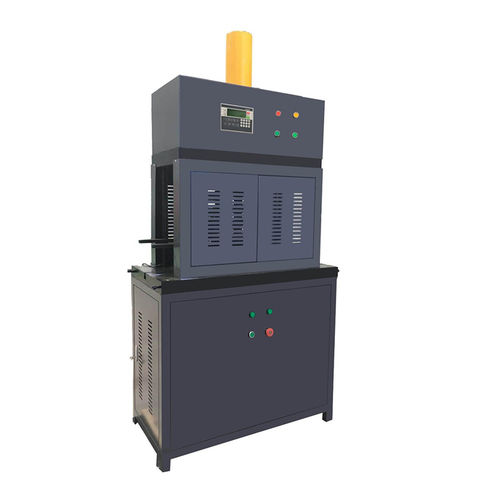

Bending testing machine FGW-160LL

automaticfor pipefor rebar

The FGW-160LL bending tester is used to perform bending experiments on various Steel bars and Steel pipes such as métal bars, plates, rebars for construction, and electric welded Steel pipes, composite Steel pipes, welded Steel pipes, métal pipes, etc., to détermine their bending plastic bending ability. FGW-1600LL automatic multi-function Steel bar (steel tube) bending testing machine is a servo control System technology independently developed by our company. It adopts servo motors and précision plunger pumps and other valve groups are controlled by PLC (programmable controller). Key Features 1.Automatic control of any bending angle: Digital real-time display of bending angle, touch key operation can achieve 90 °, 30 ° specified by national standards and other standards, 10 “Automatic bending of Steel pipe (software has been set, one key cycle sélection), can also be automatically bent at any angle (less than 90 °) through touch key input according to user requirements, one key operation automatically complétés customer settings The bending angle and the elbow return automatically, the operation is very simple. 2.Automatic control of arbitrary loading speed: The test speed that meets the requirements of the national standard, such as: 1mm/s±0.2mm, can be set to any test speed, the test speed range is: 0-100mm/min, and the test accuracy is ±0.5% 3.Automatic displacement control: Displacement range 0-400mm The FGW-160LLfully automatic (Steel pipe) Steel bar bending test machine is controlled by a servo motor.
