Universal testing machine WDW-100D
compressiontensilebending

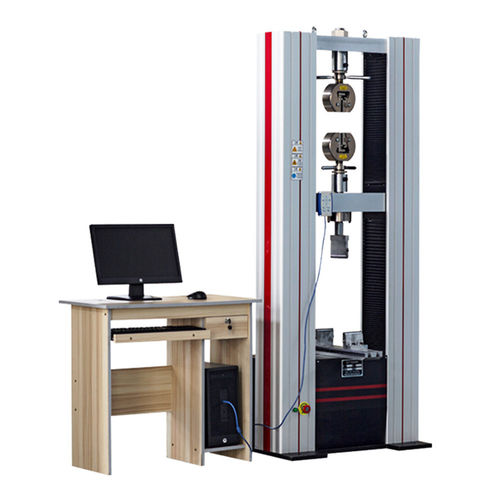

Universal testing machine - WDW-100D - Chengyu Testing Equipment Co.,Ltd - compression / tensile / bending
Universal testing machine - WDW-100D - Chengyu Testing Equipment Co.,Ltd - compression / tensile / bending
Universal testing machine - WDW-100D - Chengyu Testing Equipment Co.,Ltd - compression / tensile / bending - image - 2
Universal testing machine - WDW-100D - Chengyu Testing Equipment Co.,Ltd - compression / tensile / bending - image - 3
Universal testing machine - WDW-100D - Chengyu Testing Equipment Co.,Ltd - compression / tensile / bending - image - 4
Universal testing machine - WDW-100D - Chengyu Testing Equipment Co.,Ltd - compression / tensile / bending - image - 5
Add to favorites
Compare this product


Characteristics

Test type
compression, tensile, universal, bending, tension, shearing, tension and compression, durability, ductility
Operating mode
computer-controlled, automatic
Test material
for materials, for rubber, for plastics, for rope, for building materials, for leather, for elastic foam, for medical packaging, for packaging bag, for springs, for wire, for film, for cables, for composite materials, for chains, for copper, for rubber, for sheet metal, for plastic pipes, adhesive, for geotextiles, for pipe, for wood, for glass, for plastic sheets, for rebar, for fiber optics, for flexible materials, for round bars, for textiles, for wood panels, fabric, for bars and tubes, for paper
Sector
for the aerospace industry, for laboratories, for research and development, for quality control, for the electronics industry, for railway applications, for the packaging industry, for the textile industry, for civil and military aviation, agricultural, for the optical industry, for medical applications, for the food industry
Technology
electromechanical, electronic, electric
Configuration
vertical, benchtop
Other characteristics
precision, static, high-stability, double-column, high-speed

Description

Model:WDW-100D 100KN Computer Control Electronic Universal Testing Machine Application: The dual column testing systems with rugged structure are suited for tension, compression, bending, shearing and low cycle test. They are typically used for quality control, production testing,corresponding industries, research and development, test institutes and training centers etc. (stable operation, high efficiency, low noise and no pollution) Specifications: Max.load(kN):100kN Test force accuracy:±1% Measuring range of test force:0.04%～100%FS Deformation Measurement Range:2%～100% Relative error of deformation:±1% Displacement resolution(mm):0.01mm Accuracy of displacement:±1% Testing load speed(mm/min):0.05-500mm/min，Stepless speed regulation Accuracy of speed:±1% Max.Tension test space:700mm Max.compression test space:750mm Motor and controller:Servo Motor and Controller Cross Head Travel: 1100 mm Distance between Column: 400 mm Compression Platens:150 mm diameter Power Supply:220V,50Hz Size:700×600×1950mm Weight:450KG Standard: ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
