Universal testing machine WAW-600D 600KNcompressiontensilebending
Add to favorites
Compare this product
Characteristics
- Test type
- compression, universal, tensile, bending, pull, shearing, tension/compression
- Operating mode
- computer-controlled, automatic
- Test material
- for cables, for materials, for plastics, for composite materials, for pipes, for adhesive tape, for pipe, for sheet metal, for cement and mortar, for bars and tubes, for wire, adhesive, for round bars, for rebar
- Sector
- for laboratories, for research and development, industrial, for quality control, for the aerospace industry, for civil and military aviation, for the petroleum industry, agricultural, for railway applications
- Technology
- servo-mechanical, servo-hydraulic
- Configuration
- vertical
- Other characteristics
- precision, static, high-stability, axial
Description

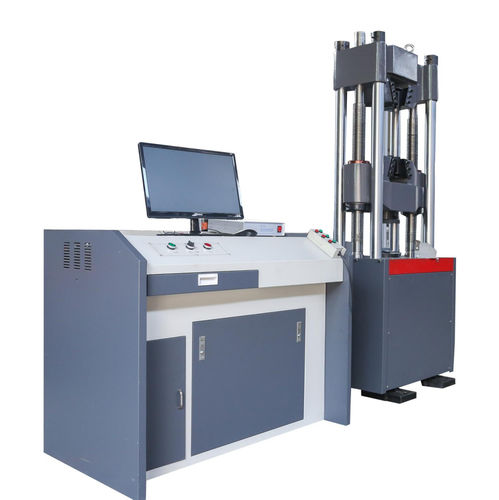

Model:WAW-600D Computer Control Hydraulic Servo Universal Testing Machine
Max.Force:600KN, 60 tons
Application:WAW-600D Computer controlled electro-hydraulic servo universal testing machine adopts the oil cylinder under-mounted host, which is mainly used for the tensile, compression and bending tests of metals and non-metals. Applicable to metallurgy, construction, light industry, aviation, aerospace, materials, colleges, scientific research units and other fields.
Specification:
Test machine level: No.1
6-Columns
Maximum tensile test space:580mm(can be modified)
Maximum compression space:500mm(can be modified)
Maximum moving speed of piston:50mm/min
Standard:
ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221.ASTM E83, ISO 9513, BS3846, EN10002-4. ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.etc.
