Universal testing machine WAW-L 5000KNtensiletensioncomputer-controlled
Add to favorites
Compare this product
Characteristics
- Test type
- universal, tensile, tension
- Operating mode
- computer-controlled
- Test material
- for building materials, for rubber, for composite materials, for pipe, for cables, for wire, for round bars, for rebar, for stabilizer bar, for chains, for plastic pipes, for rope, for pipes, for high-strength bolts
- Sector
- for laboratories, for research and development, industrial, for the automotive industry, for quality control, for civil and military aviation, agricultural, for railway applications
- Technology
- servo-mechanical, servo-hydraulic
- Configuration
- horizontal
- Other characteristics
- precision, static, high-stability, high-speed, three-phase
Description

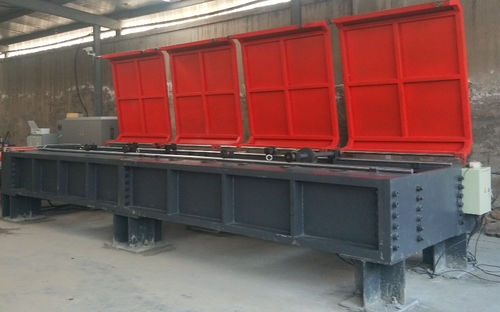

Model:WAW-L 5000KN Hydraulic Servo Horizontal Tensile Testing Machine
Max.Force:5000KN, 500tons(other force capacity can be modified)
Length: 6m,8m,10m,12m(can be modified )
Application:
WAW-L 5000KN Hydraulic servo Horizontal Tensile Testing Machine meets the requirements of tensile strength tests on long samples and full-size samples. It is used in the stretch performance tests on various metal components including steel cable, chain, anchor link, lifting belt, cable, separating disk, etc. The main machine adopts the welding steel framework structure. The test space is adjusted by the segmental movement of the crossbeam. The testing force is exerted by a single-rod double-action cylinder. The test operation is controlled manually or by the servo controller. The force is measured by the load sensor. Testing force value and testing curve and displayed on the computer.
