Torsion test machine CYLSN-1000Etorquefully-automaticcomputer-controlled
Add to favorites
Compare this product
Characteristics
- Test type
- torsion, torque
- Operating mode
- fully-automatic, computer-controlled
- Test material
- screw, for metallic materials, for high-strength bolts
- Sector
- for laboratories, for research and development, for quality control
- Technology
- electro-hydraulic
- Configuration
- horizontal
- Other characteristics
- precision, high-speed
Description

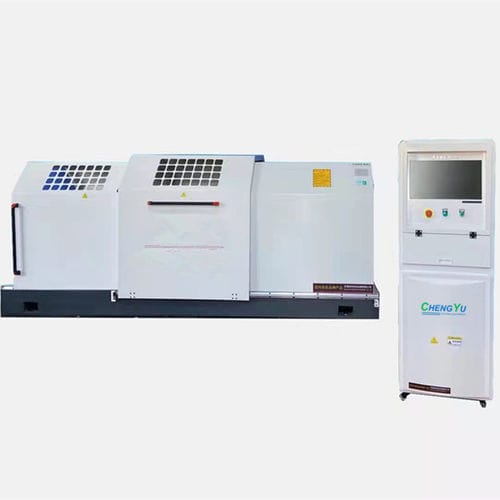

Model:CYLSN-1000E Microcomputer Controlled High Strength Bolt Testing Machine
Specification:
1.Axial force detection range: 100-1000kN
2.Torque detection range: 100-5000Nm
3.Large hexagon bolt specifications: M10\M12\M16\M20\M24\M27\M30\M36\M39
4.Bolt length: 30mm---350mm (≥2.5d)
5.Test accuracy: axial force ±1.0% torque ±1.0%
6.Torsion angle measurement range 0-1000° (unlimited)
7.Output speed: 0.1-4r/min
8.Voltage: control system 220V AC; motor AC 380V
Standard:
EN14399-2:2005(E)
GB/T 2611-2007
JB/T 9370-2015
JJG 139-2014
GB/T1231-2006
GB/T16823.1-2010
GB50205-2001
GB/T 32076.2-2015
EN 14399.2-2005
ASTM A325M-2009
AS/NZS1252:1996
