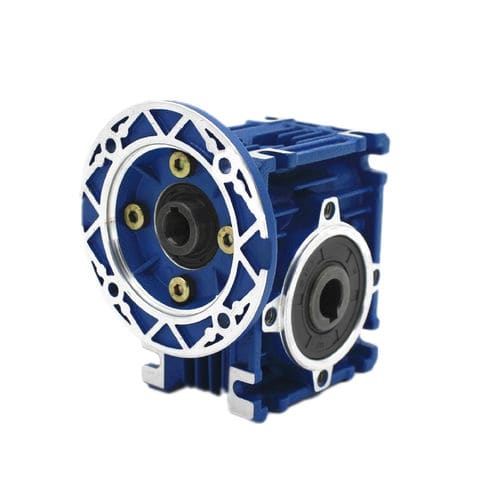

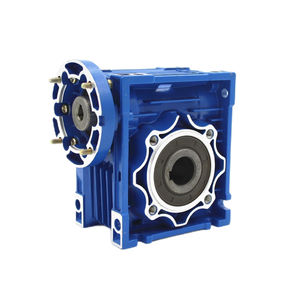

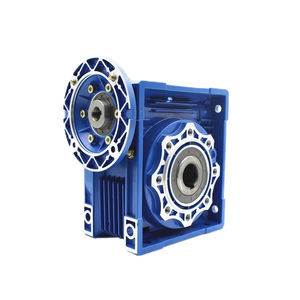

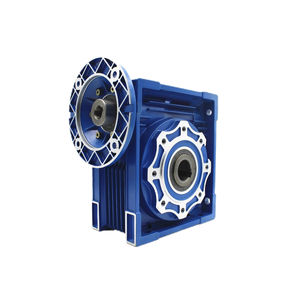

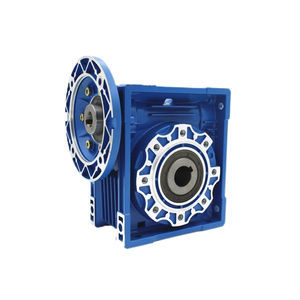

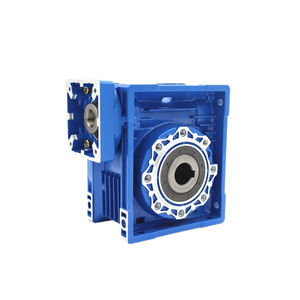

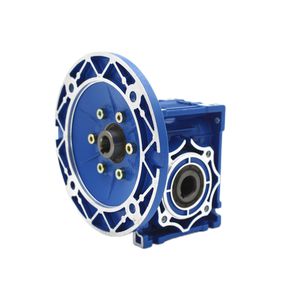

Worm gearbox CYRV 30

right anglehollow-shaft20 - 50 Nm

CYRV series of worm gearbox enjoys 15% OFF to celebrate our 30th anniversary,and represents the most advanced solution to market requirements in terms of efficiency and flexibility. ABB, SIEMES and other high-end motors can be installed together with our gearbox to be sold. Key features • Factory outlet ,provide video factory inspection • Speed ratio range:5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1 • Input hole: ∅9/11 • Output shaft/hole: ∅14 h6 • Output Torque: 5N.m---21N.m • Input Speed: 1400rpm • Output Speed : 17.5rpm-280rpm • Rated Input Power: 0.06Kw---0.18Kw • Die-cast aluminum alloy housing • Worm wheel adopts high quality Tin bronze • Certification: RoHS/CE/IAF/CNAS /ISO9001/ISO45001/ISO14001 • Bipolar reducers: available • Flange: round or square • Mounting orientation: B3 B6 B7 B8 V5 V6 • Can be customized according to customer needs • Delivery time: 7 days • Approximate gross weight: 1.5 KGS Key benefits • Good heat dissipation • Low temperature rise • Low noise, smooth operation • Long service life and more durability • Energy saving and high efficiency • Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free,no need to add oil for whole life
