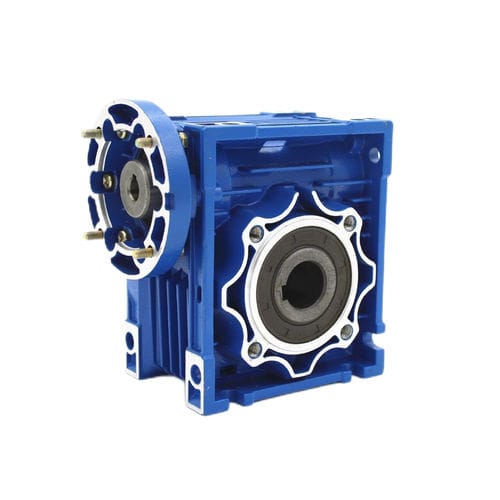

Worm gearbox CYRV 50

right anglesolid-shaftdual-shaft

CYRV50 Worm gearboxes enjoys 15% OFF to celebrate our 30th anniversary currently represents the most advanced solution to market requirements in terms of efficiency and flexibility. ABB, SIEMES and other high-end motors can be installed together with our gearbox to be sold. Key features • Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free,no need to add oil for whole life • Factory outlet ,provide video factory inspection • Speed ratio range:5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1,100:1 • Input hole: ∅11/14/19 • Output hole: ∅25 h6 • Input Speed: 1400rpm • Output Speed : 14rpm-280rpm • Die-cast aluminum alloy housing • Worm wheel adopts high quality Tin bronze • Certification: RoHS/CE/IAF/CNAS /ISO9001/ISO45001/ISO14001 • Bipolar reducers: available • Flange: round or square • Mounting orientation: B3 B6 B7 B8 V5 V6 • Can be customized according to customer needs • Delivery time: 7 days • Approximate gross weight: 4.5 KGS Key benefits • Good heat dissipation • Low temperature rise • Low noise, smooth operation • Long service life and more durability • Energy saving and high efficiency
