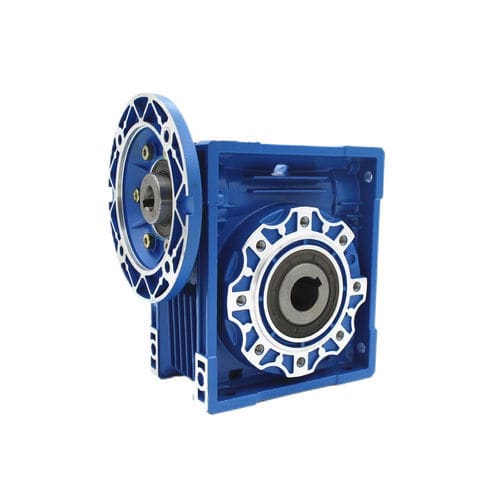

Worm gearbox CYRV075right anglesolid-shaftdual-shaft
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft, dual-shaft, multiple-output
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm
- Number of stages
- single-stage, dual-stage
- Performance
- high-performance, low-noise, high-efficiency, maintenance-free
- Applications
- for machines, transmission, for heavy-duty applications, for machinery, centrifuge, for conveyor, for industrial applications, for mining applications, fan, for lifting applications, for material handling equipment, for hoist units, for textiles, for marine applications, for elevator, winch, for milling applications, for doors, for grinding machines, for pump, for electric motors, for mixers, for mixing trucks, for motor coupling, for the crane and lifting industry, for cutting machine
- Other characteristics
- high-quality
- Power
Min.: 0.37 kW
(0.5 hp)Max.: 3 kW
(4.08 hp)- Gear ratio
Min.: 5 unit
Max.: 100 unit
Description
CYRV worm gearbox enjoys 15% OFF to celebrate our 30th anniversary, represents the most advanced solution to market requirements in terms of efficiency and flexibility. ABB, SIEMES and other high-end motors can be configured
Key features
• Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free,no need to add oil for whole life
• Factory outlet ,provide video factory inspection
• Speed ratio range:5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1,100:1
• Input shaft/hole: ∅14/19/24/28
• Output shaft/hole: ∅28 h6
• Input Speed: 1400rpm
• Output Speed : 14rpm-280rpm
• Die-cast aluminum alloy housing
• Worm wheel adopts high quality Tin bronze
• Certification: RoHS/CE/IAF/CNAS /ISO9001/ISO45001/ISO14001
• Bipolar reducers: available
• Flange: round or square
• Mounting orientation: B3 B6 B7 B8 V5 V6
• Can be customized according to customer needs
• Delivery time: 7 days
• Approximate gross weight: 10 KGS
Key benefits
• Good heat dissipation
• Low temperature rise
• Low noise, smooth operation
• Long service life and more durability
• Energy saving and high efficiency
• Low backlash 8-10 Arc minute
