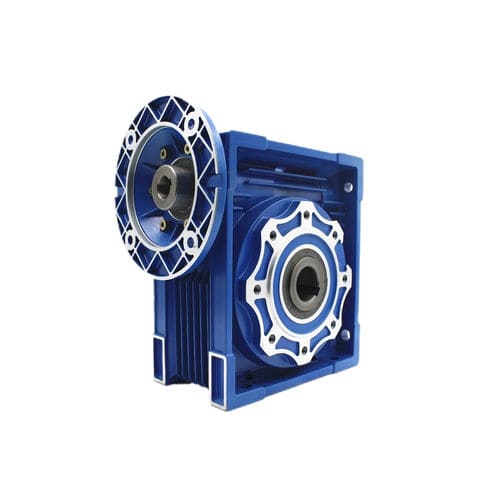

Worm gearbox CYRV 110right anglesolid-shaftdual-shaft
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft, dual-shaft, multiple-output
- Torque
- 200 - 500 Nm, 500 - 1000 Nm
- Number of stages
- single-stage, dual-stage
- Performance
- high-efficiency, low-noise, high-performance, maintenance-free
- Applications
- for industrial applications, transmission, for machinery, for material handling equipment, for textiles, winch, for milling applications, for doors, for mining applications, for elevator, for heavy-duty applications, for lifting applications, for conveyor, for machines, for marine applications, for hoist units, fan, centrifuge, for grinding machines, for pump, for electric motors, for mixers, for mixing trucks, for motor coupling, for the crane and lifting industry, for cutting machine
- Other characteristics
- high-quality
- Power
Max.: 7.5 kW
(10.2 hp)Min.: 0.55 kW
(0.75 hp)- Gear ratio
Max.: 100 unit
Min.: 5 unit
Description
CYRV worm gearbox enjoys 15% OFF to celebrate our 30th anniversary, represents the most advanced solution to market requirements in terms of efficiency and flexibility. ABB, SIEMES and other high-end motors can be configured
Key features
• Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free,no
need to add oil for whole life
• Factory outlet ,provide video factory inspection
• Input shaft/hole: ∅19/24/28/38
• Output shaft/hole: ∅42 h6
• Input Speed: 1400rpm
• Output Speed : 14rpm-280rpm
• Die-cast aluminum alloy housing
• Worm wheel adopts high quality Tin bronze
• Certification: RoHS/CE/IAF/CNAS /ISO9001/ISO45001/ISO14001
• Bipolar reducers: available
• Flange: round or square
• Mounting orientation: B3 B6 B7 B8 V5 V6
• Can be customized according to customer needs
• Delivery time: 7 days
• Approximate gross weight: 21 KGS
Key benefits
• Good heat dissipation
• Low temperature rise
• Low noise, smooth operation
• Long service life and more durability
• Energy saving and high efficiency
•Low backlash 8-10 Arcminute
