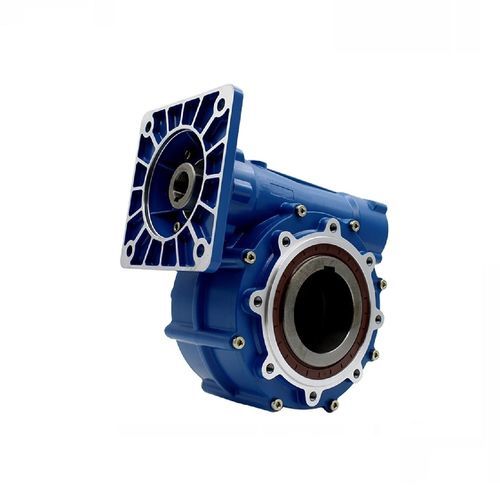

Worm gearbox CYWF90

right anglehollow-shaft200 - 500 Nm

CYWF 90 worm gearbox is with 90mm output size, adopt round box shape and are specially designed for the large bore output applications. And output hole diameter less than 90mm can be customized as needed.We currently have 50mm~110mm bore output for models CYWF50,CYWF60,CYWF60-S,CYWF70,CYWF80,CYWF90 ,CYWF100 and CYWF110. ABB, SIEMES and other high-end motors can be installed together with our gearbox to be sold. Key features • Factory outlet ,provide video factory inspection • Speed ratio range:5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1,100:1 • Input : ∅35mm • Output : ∅90mm(ø81-ø90 can be customized,new prices please contact with the service) • Flange:180*180mm •4 pole motor Input Speed: 1400rpm •4pole Output Speed : 14rpm-280rpm •Servo Input Speed: 2000rpm • Servo Output Speed : 20rpm-400rpm • Die-cast aluminum alloy housing • Worm wheel adopts high quality Tin bronze • Certification: RoHS/CE/IAF/CNAS /ISO9001/ISO45001/ISO14001 • Flange: round or square • Mounting orientation: B3 B6 B7 B8 V5 V6 • Can be customized according to customer needs • Delivery time: 7 days • Approximate gross weight: 23.5 KGS Key benefits • Low temperature rise • Low noise, smooth operation • Long service life and more durability • Energy saving and high efficiency • Can be installed in any position and in all directions • Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free,no need to add oil for whole lifes
