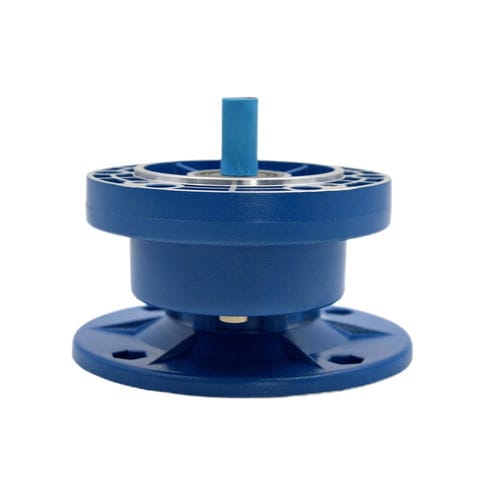

Spiral bevel gearbox CYPC 80coaxialsingle-stagehigh-efficiency
Add to favorites
Compare this product
Characteristics
- Type
- spiral bevel
- Shaft orientation
- coaxial
- Number of stages
- single-stage
- Performance
- high-efficiency, low-noise, high-performance, maintenance-free
- Applications
- transmission, for machinery, for industrial applications, for material handling equipment, for milling applications, for textiles, for mining applications, for heavy-duty applications, for lifting applications, fan, for conveyor, for marine applications, centrifuge, winch, for hoist units, for machines, for grinding machines, for pump, for electric motors, for mixers, for the crane and lifting industry, for cutting machine
- Other characteristics
- high-quality, combined
- Power
0.75 kW
(1.02 hp)- Gear ratio
3 unit, 5 unit
Description
CYPC first stage gear reduction device can be used as reducer directly connected to ordinary motors and servo motor.
It can also be combined with the CYRV, CYRW, CYWF and CYVF serials to expand the speed ratio, improve the load-bearing capacity and transmission efficiency, and serve a wider range of applications.
Key features
• Input hole: ∅19
• Output shaft: ∅19
• Die-cast aluminum alloy housing
• Certification: RoHS/CE/IAF/CNAS /ISO9001/ISO45001/ISO14001
• Flange: round or square
• Mounting orientation: B3 B6 B7 B8 V5 V6
• Can be customized according to customer needs
• Delivery time: 7 days
• Approximate gross weight: 5 KGS
Catalogs
No catalogs are available for this product.
See all of Chenyue (Jiangsu) Technology Co., Ltd.‘s catalogsOther Chenyue (Jiangsu) Technology Co., Ltd. products
CYPC first stage gear reduction device Input 11/14/19mm Output 14/19mm ratio 2/2.5/3/3.5/4/4.5/5 combined with NMRV series to be with several hundred speed ratio
