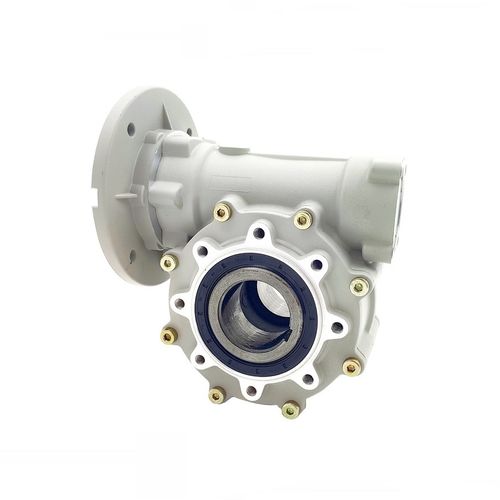

Worm gearbox CYWF70

right anglehollow-shaft200 - 500 Nm

CYWF 70 worm gearbox enjoys 25% OFF to celebrate our 30th anniversary, is with 70mm output size, adopt round box shape and are specially designed for the large bore output applications. And output hole diameter less than 70mm can be customized as needed.We currently have 50~110mm bore output for models CYWF50,CYWF60,CYWF70,CYWF80,CYWF90 ,CYWF100 and CYWF110. ABB, SIEMES and other high-end motors can be installed together with our gearbox to be sold. Key features • Factory outlet ,provide video factory inspection • Speed ratio range:5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1,100:1 • Rated Power：0.75KW--7.5KW • Output Torque：200N.M--647N.M • Input : ∅35mm • Output : ∅70mm(ø61-ø70 can be customized,new prices to be noted by the service) • Flange:180*180mm •4 pole motor Input Speed: 1400rpm •4pole Output Speed : 14rpm-280rpm •Servo Input Speed: 2000rpm • Servo Output Speed : 20rpm-400rpm • Die-cast aluminum alloy housing • Worm wheel adopts high quality Tin bronze • Certification: RoHS/CE/IAF/CNAS /ISO9001/ISO45001/ISO14001 • Flange: round or square • Mounting orientation: B3 B6 B7 B8 V5 V6 • Can be customized according to customer needs • Delivery time: 7 days • Approximate gross weight: 28 KGS • Color: Blue,Green and Grey Key benefits • Low temperature rise • Low noise, smooth operation • Long service life and more durability • Energy saving and high efficiency • Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free,no need to add oil for whole lifes
