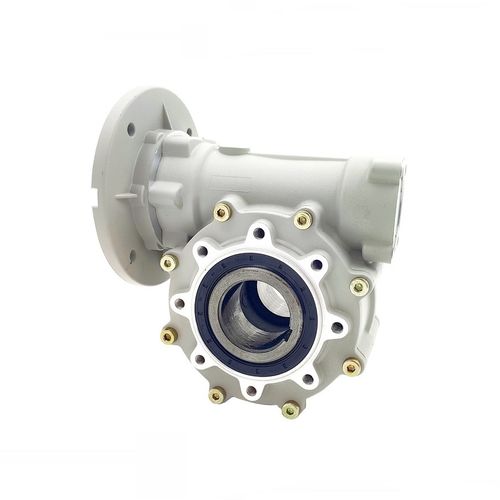

Worm gearbox CYWF 80right anglehollow-shaft200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Torque
- 200 - 500 Nm, 500 - 1000 Nm
- Mounting
- shaft-mounted, flange-mounted
- Configuration
- compact, flange
- Number of stages
- single-stage, multi-stage
- Performance
- high-efficiency, high-performance, maintenance-free, high-torque, low-backlash, high-power, for heavy loads, high-capacity
- Applications
- for robots, transmission, for machinery, for industrial applications, for automation, drive, for material handling equipment, building, for machines, for textiles, machine, for elevator, for doors, for heavy-duty applications, for the metallurgical industry, for lifting applications, for conveyor, for roller mills, for the chemical industry, for medical devices, for railway applications, for milling applications, for servo motors, for stepper motors, industrial, for machine tools, packaging machine, for the cement industry, for the sugar industry, for mixers, for motor coupling, for continuous operation, for loaders, electronic equipment, for power generation
- Other characteristics
- high-quality, mechanical transmission, transport, aluminum, mounted, combined
- Rotational speed
Max.: 280 rpm
(1,759.29 rad.min-1)Min.: 14 rpm
(87.96 rad.min-1)- Power
Max.: 7.5 kW
(10.2 hp)Min.: 0.75 kW
(1.02 hp)- Gear ratio
Max.: 100 unit
Min.: 5 unit
Description
CYWF 80 worm gearbox is with 80mm output size, adopt round box shape and are specially designed for the large bore output applications. And output hole diameter less than 80mm can be customized as needed.We currently have 50mm~110mm bore output for models CYWF50,CYWF60,CYWF60-S,CYWF70,CYWF80,CYWF90 ,CYWF100 and CYWF110. ABB, SIEMES and other high-end motors can be installed together with our gearbox to be sold.
Key features
• Factory outlet ,provide video factory inspection
• Speed ratio range:5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1,100:1
• Rated Power：0.75KW--7.5KW
• Output Torque： 200N.M--647N.M
• Input : ∅35mm
• Output : ∅80mm(ø71-ø80 can be customized,new prices to be noted by the service)
• Flange:180*180mm
•4 pole motor Input Speed: 1400rpm
•4pole Output Speed : 14rpm-280rpm
•Servo Input Speed: 2000rpm
• Servo Output Speed : 20rpm-400rpm
• Die-cast aluminum alloy housing
• Worm wheel adopts high quality Tin bronze
• Certification: RoHS/CE/IAF/CNAS /ISO9001/ISO45001/ISO14001
• Flange: round or square
• Mounting orientation: B3 B6 B7 B8 V5 V6
• Can be customized according to customer needs
• Delivery time: 7 days
• Approximate gross weight: 25.5 KGS
• Color: Blue,Green and Grey
Key benefits
• Low temperature rise
• Low noise, smooth operation
• Long service life and more durability
• Energy saving and high efficiency
• Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free,no need to add oil for whole lifes
VIDEO
Other Chenyue (Jiangsu) Technology Co., Ltd. products

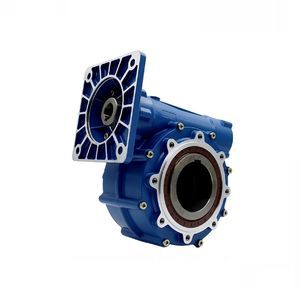

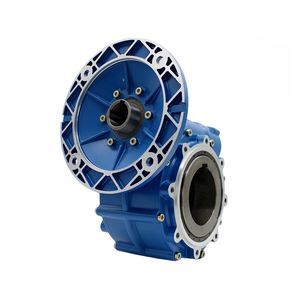

CYWF High Torque Worm Gearbox large Bore Input 22/35mm Output 50mm-110mm Output Torque 80-647N.m Max7.5Kw motor Ratio 5:1/100:1
