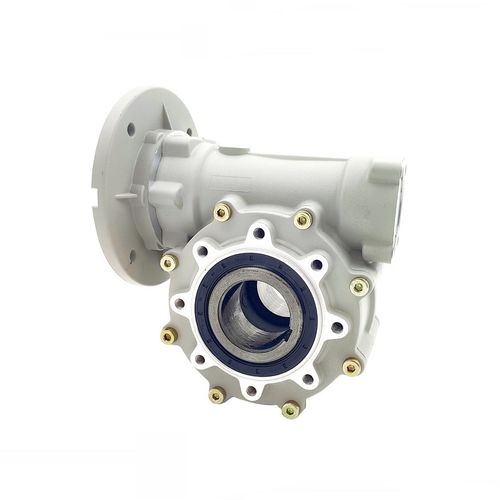

Worm gearbox CYWF 100
right anglehollow-shaft200 - 500 Nm

worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
Add to favorites
Compare this product

Go to the Chenyue (Jiangsu) Technology Co., Ltd. website for more information

Characteristics

Type
worm
Shaft orientation
right angle
Shaft configuration
hollow-shaft
Torque
200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm
Mounting
shaft-mounted, flange-mounted
Configuration
compact, flange
Number of stages
single-stage, multi-stage
Performance
high-efficiency, low-noise, maintenance-free, high-torque, low-backlash, high-power, for heavy loads, high-capacity
Applications
for medical devices, transmission, for heavy-duty applications, for lifting applications, for conveyors, for doors, for the paper industry, turbine, wheel, for servo motors, building, for actuators, for powder concentrator, for automation, for machines, for tools, for the chemical industry, for milling applications, for elevators, for vehicles, for railway applications, for test benches, for conveyors, for buildings, for elevators, for robotics, industrial, for machine tools, packaging machine, for food industry machinery, for pump, for the cement industry, for the sugar industry, for the metallurgical industry, for cleaners, for electric motors, for mixers, for mixing trucks, for the food industry, for tire manufacturing, for continuous operation
Other characteristics
high-quality, aluminum, mechanical transmission, transport
Rotational speed

Max.: 280 rpm
(1,759.29 rad.min-1)

Min.: 14 rpm
(87.96 rad.min-1)

Power

Max.: 7.5 kW
(10.2 hp)

Min.: 0.75 kW
(1.02 hp)

Gear ratio

Max.: 100 unit

Min.: 5 unit

Description

CYWF 100 worm gearbox enjoys 25% OFF to celebrate our 30th anniversary, is with 100mm output size, adopt round box shape and are specially designed for the large bore output applications. And output hole diameter less than 100mm can be customized as needed.We currently have 50mm~110mm bore output for models CYWF50,CYWF60,CYWF60-S,CYWF70,CYWF80,CYWF90 ,CYWF100 and CYWF110. ABB, SIEMES and other high-end motors can be installed together with our gearbox to be sold. Key features • Factory outlet ,provide video factory inspection • Speed ratio range:5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1,100:1 • Rated Power：0.75KW--7.5KW • Output Torque： 200N.M--647N.M •4 pole motor Input Speed: 1400rpm •4pole Output Speed : 14rpm-280rpm •Servo Input Speed: 2000rpm • Servo Output Speed : 20rpm-400rpm • Input : ∅35mm • Output : ∅100mm(ø91-ø100 can be customized,new prices to be noted by the service) • Flange:180*180mm • Die-cast aluminum alloy housing • Worm wheel adopts high quality Tin bronze • Certification: RoHS/CE/IAF/CNAS /ISO9001/ISO45001/ISO14001 • Flange: round or square • Mounting orientation: B3 B6 B7 B8 V5 V6 • Can be customized according to customer needs • Delivery time: 7 days • Approximate gross weight: 25.5 KGS • Color: Blue,Green and Grey Key benefits • Low temperature rise • Low noise, smooth operation • Long service life and more durability • Energy saving and high efficiency • Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free,no need to add oil for whole lifes
