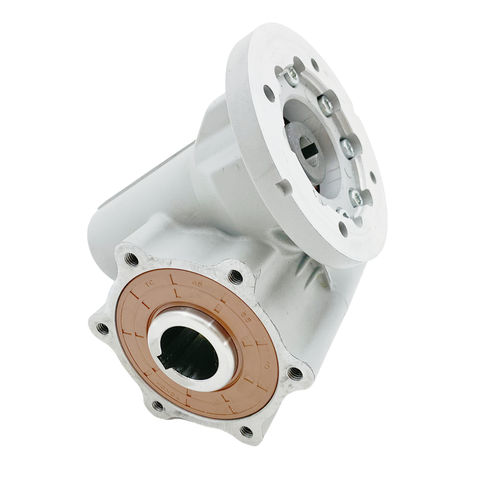

Worm gearbox CYXRV060right anglekeyed bore20 - 50 Nm
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- keyed bore
- Torque
- 20 - 50 Nm, 10 - 20 Nm
- Configuration
- flange
- Number of stages
- single-stage, two-stage
- Performance
- high-efficiency, low-noise, high-performance, maintenance-free, high-torque
- Applications
- transmission, for machinery, drive, for material handling equipment, for textiles, for heavy-duty applications, for hoist units, for lifting applications, for machines, for mining applications, for belt conveyors, machine, for medical applications, for stepper motors, for marine applications, for automation
- Other characteristics
- low-speed, waterproof
- Rotational speed
Min.: 48 rpm
(301.59 rad.min-1)Max.: 145 rpm
(911.06 rad.min-1)- Power
Min.: 0.09 kW
(0.12 hp)Max.: 0.37 kW
(0.5 hp)- Gear ratio
Min.: 10 unit
Max.: 30 unit
Description
Chenyue(Jiangsu)Technology Co.,Ltd. which is a professional leading manufacturer of worm gearboxes and system solutions with 30 years history since 1993 covering an area of 30,000 sq.m with 8 workshop buildings and 2 office buildings .
For this protected level IP66 Waterproof Worm Gearbox CYXRV60 with Input 14 Output 30mm Ratio10:1-30:1 for Automatic Car Washing
Model: CYXRV60 Protected Waterproof Worm gearbox
Gearing Arrangement : Worm Input Hole: 14mm
Output Hole: 30mm
Speed ratio: 10:1 12:1 15:1 20:1 30:1
Flange NO.: 71B14,80B14 or customized
Input Speed: 1450rpm
Output Speed : 48rpm-145rpm
Output Torque: 14N.m-36N.m
Net Weight: 4.1kgs
Gross Weight : 5.2kgs
Oil : Full Synthethic Lubrication
Configuration : High one
Certification : CE/RoHS/IAF/CNAS/ISO9001/ISO45001/ISO14001
Worm material : SUS304+ZCuSn12Ni2( Tin Bronze)
Worm Gearbox Applications: Automatic Car Washing
Waterproof level : IP66 IP67
Obvious features: Free maintenance ,no need to change oil for whole life.
Warranty : 1 year
Video-Outgoing Inspection : Provide
Origin : Mainland China
