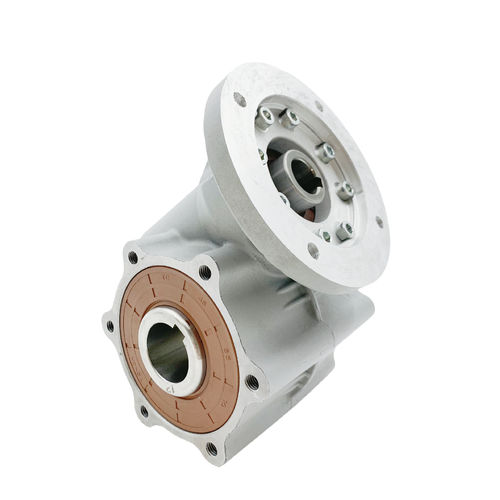

Worm gearbox CYXRV70right anglekeyed bore50 - 100 Nm
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- keyed bore
- Torque
- 50 - 100 Nm, 20 - 50 Nm
- Number of stages
- single-stage, two-stage
- Performance
- high-efficiency, low-noise, high-performance, maintenance-free, low-backlash
- Applications
- for construction equipment, transmission, for medical devices, for the chemical industry, winch, for railway applications, for industrial applications, for mining equipment, wheel, building, for servo motors, for doors, drive, for milling applications, for elevators, for robots, for material handling equipment, for textiles, machine, for heavy-duty applications, for lifting applications, for machines, for mining applications, for the metallurgical industry, for automobiles, centrifuge, for marine applications, for automation, for hoist units, for conveyors, for roller mills
- Other characteristics
- waterproof
- Rotational speed
Min.: 48 rpm
(301.59 rad.min-1)Max.: 145 rpm
(911.06 rad.min-1)- Power
Min.: 0.12 kW
(0.16 hp)Max.: 0.75 kW
(1.02 hp)- Gear ratio
Min.: 5 unit
Max.: 30 unit
Description
Chenyue(Jiangsu)Technology Co.,Ltd. which is a professional leading manufacturer of worm gearboxes and system solutions with 30 years history since 1993 covering an area of 30,000 sq.m with 8 workshop buildings and 2 office buildings .
For this protected level IP66 Waterproof Worm Gearbox CYXRV70 with Input 19 Output 30mm Ratio10:1-30:1 for Automatic Car Washing
Model: CYXRV70 Protected Waterproof Worm gearbox
Gearing Arrangement : Worm Input Hole: 19mm
Output Hole: 30mm
Speed ratio: 10:1 12:1 15:1 20:1 30:1
Flange NO.: 71B14,80B14 or customized
Input Speed: 1400rpm
Output Speed : 48rpm-145rpm
Output Torque: 14N.m-36N.m
Net Weight: 4.1kgs
Gross Weight : 5.2kgs
Oil : Full Synthethic Lubrication
Configuration : High one
Certification : CE/RoHS/IAF/CNAS/ISO9001/ISO45001/ISO14001
Worm material : SUS304+ZCuSn12Ni2 (Tin Bronze)
Worm Gearbox Applications: Automatic Car Washing
Waterproof level : IP66 IP67
Obvious features: Free maintenance ,no need to change oil for whole life.
Warranty : 1 year
Video-Outgoing Inspection : Provide
Origin : Mainland China
