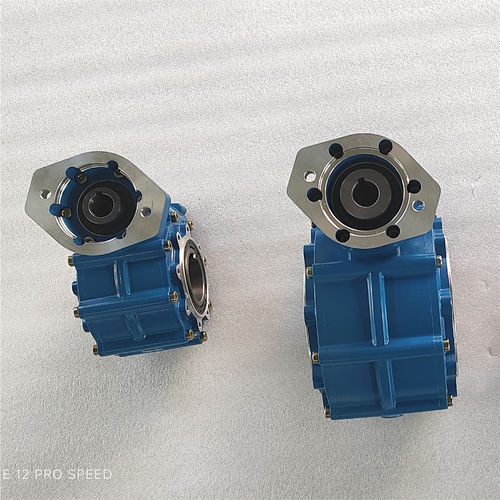

Worm gearbox CYWF90-Hright anglehollow-shaftdual-shaft
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft, dual-shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm
- Mounting
- flange-mounted, shaft-mounted
- Configuration
- compact, flange
- Number of stages
- single-stage, two-stage
- Performance
- high-efficiency, low-noise, maintenance-free, high-torque
- Applications
- for electric motors, transmission, shaft, for machinery, for automation, for printing machines, for railway vehicles, for continuous operation, for industrial applications, drive, for hydraulic pumps, for hydraulic turbines, for robots, for textiles, for servo motors, for doors, for heavy-duty applications, for stepper motors, for food industry machinery, packaging machine, for cutting machine, for conveyor, for machine tools, for elevator, for lifting applications, for marine applications, for weaving machine, for medical devices, for the metallurgical industry, for paper machines
- Rotational speed
Min.: 14 rpm
(87.96 rad.min-1)Max.: 400 rpm
(2,513.27 rad.min-1)- Power
Min.: 0.75 kW
(1.02 hp)Max.: 7.5 kW
(10.2 hp)- Gear ratio
Min.: 5 unit
Max.: 100 unit
- Weight
Min.: 22 kg
(48.5 lb)Max.: 23.5 kg
(51.81 lb)
Description
Chenyue(Jiangsu)Technology Co.,Ltd. which is a professional leading manufacture of worm gearboxes and system solutions with 31 years history since 1993 .
CYWF 90-H worm gearbox are specially designed for the large bore output hydraulic machines . And output hole diameter can be customized as needed.We currently have 50mm~110mm bore output for models CYWF50-H,CYWF60-H,CYWF70-H,CYWF80-H,CYWF90-H ,CYWF100-H and CYWF110-H. Suitable for motor 3kW and 7.5kW power.
Key features
• With Tin bronze worm gear and synthetic lubricant oil,free maintenance,no need to add oil
for whole life
• Factory outlet ,provide video factory inspection
• Speed ratio range:5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1,100:1
• Input : ∅25.5mm（can be customized)
• Output : ∅90.25mm( can be customized)
•Output Torque: 200N.m---647N.m
•Rated Motor power: 0.75kW--7.5kW
• Flange:hydraulic motor flange
•4 pole motor Input Speed: 1400rpm
•4pole Output Speed : 14rpm-280rpm
•Servo Input Speed: 2000rpm
• Servo Output Speed : 20rpm-400rpm
• Die-cast aluminum alloy housing
• Worm wheel adopts high quality Tin bronze
• Certification: RoHS/CE/IAF/CNAS /ISO9001/ISO45001/ISO14001
• Flange: round or square
• Mounting orientation: B3 B6 B7 B8 V5 V6
• Can be customized according to customer needs
• Delivery time: 7 days
• Approximate gross weight: 23.5 KGS
• Color: Blue,Green and Grey
Key benefits
• Low temperature rise
• Low noise, smooth operation
• Long service life and more durability
• Energy saving and high efficiency
