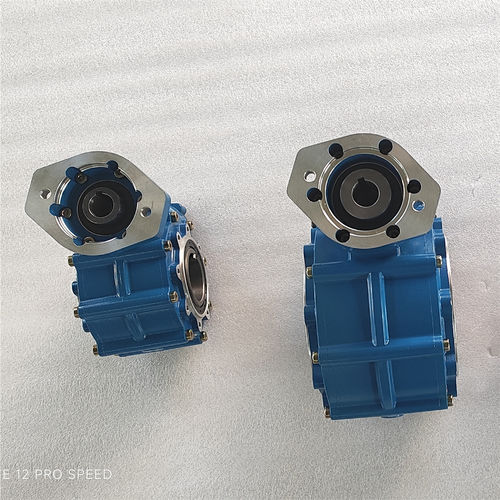

Worm gearbox CYWF110-H

right anglehollow-shaftsolid-shaft

Chenyue(Jiangsu)Technology Co.,Ltd. which is a professional leading manufacture of worm gearboxes and system solutions with 31 years history since 1993 . All the output hole diameter can be customized as needed.We currently have 50mm~110mm bore output for models CYWF50-H,CYWF60-H,CYWF70-H,CYWF80-H,CYWF90-H ,CYWF100-H and CYWF110-H. Suitable for motor 3kW and 7.5kW power. Key features • With Tin bronze worm gear and synthetic lubricant oil,free maintenance,no need to add oil for whole life • Factory outlet ,provide video factory inspection • So far we have no this hydraulic flange mould,all hand-made by CNC machines . If you have enough Q'ty to purchase,we can make a free mould for you and then you can save USD 100 a pc at least. • Speed ratio range:5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1,100:1 • Input : ∅25.5mm（can be customized) • Output : ∅110.25mm( can be customized) •Output Torque: 200N.m---647N.m •Rated Motor power: 0.75kW--7.5kW • Flange:hydraulic motor flange •4 pole motor Input Speed: 1400rpm •4pole Output Speed : 14rpm-280rpm •Servo Input Speed: 2000rpm • Servo Output Speed : 20rpm-400rpm • Die-cast aluminum alloy housing • Worm wheel adopts high quality Tin bronze • Certification: RoHS/CE/IAF/CNAS /ISO9001/ISO45001/ISO14001 • Flange: round or square • Mounting orientation: B3 B6 B7 B8 V5 V6 • Can be customized according to customer needs • Delivery time: 7 days • Approximate gross weight: 22.5 KGS • Color: Blue,Green and Grey Key benefits • Low temperature rise • Low noise, smooth operation • Long service life and more durability • Energy saving and high efficiency
