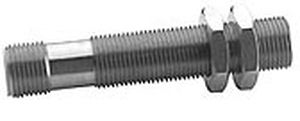

Hall effect proximity sensor MP1001 seriesmagneticcylindricaldigital
Add to favorites
Compare this product
Characteristics
- Technology
- Hall effect, magnetic
- Shape
- cylindrical
- Output signal
- digital
- Mounting
- threaded
- Protection level
- IP67
- Other characteristics
- non-contact
Description
Description
One-piece non-contact solid-state position sensors that operate through the use of Hall Effect technology with magnetic fields generated by permanent magnets. They provide a sinking current output
Features
Solid state reliability
Stable output over operating temperature range
Compatible with unregulated power supply
South pole activated
Open collector (sinking or NPN) output can be used with bipolar or CMOS logic circuits with suitable pull-up resistor
RoHS compliant
IP67
VIDEO
Catalogs
No catalogs are available for this product.
See all of CHERRY‘s catalogs
