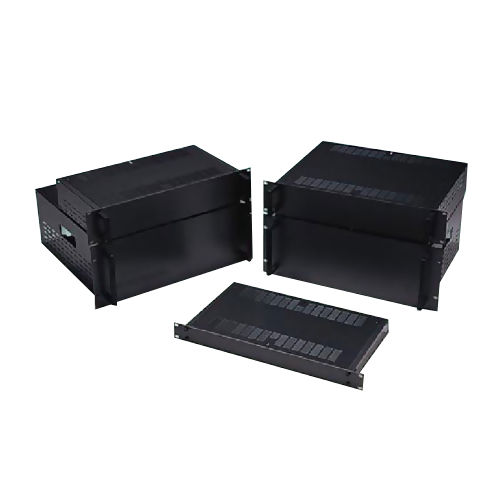

19" rack electrical enclosure PF-19 series

aluminumcircuit breaker

The PF-19 Series of rack mounted 19" Enclosures, like its companion SA Series, is designed for both the industrial and home hobbyists. PF-19 is a heavy duty enclosure which can be installed into any standard 19" rack or using the rubber feet provided, set on any surface. The high quality steel body features removable top and bottom panels, which are liberally vented so your components stay cool. The 3.00 mm thick Aluminum front panel is stout but easily worked by the user. Inside front steel plate and multi holed mounting rails, allow for convenient PCB and component installation. Features Complies with IEC 297, EIA RS-310 C1977, DIN41494; allows complete compatibility with all 19" standard equipment. Careful design allows for easy modification to the customer's requisites. Wide range of applications; the PF-19 system consists of 5 sizes from 1U to 5U and 3 different depth. Easy access for user interface. Quick assembly Packed flat for convenient shipment and storage. RoHS compliance Conforms to ASTM D610-01 and ASTM B117 (500 hours salt spray test) Materials/Finish High grade cold rolled steel 0.9 mm thickness. Aluminum on Front and Rear panel Powder coat finish preceded by 5 stage iron phosphate pretreatment. Standard color is low gloss black. Special colors upon request.
