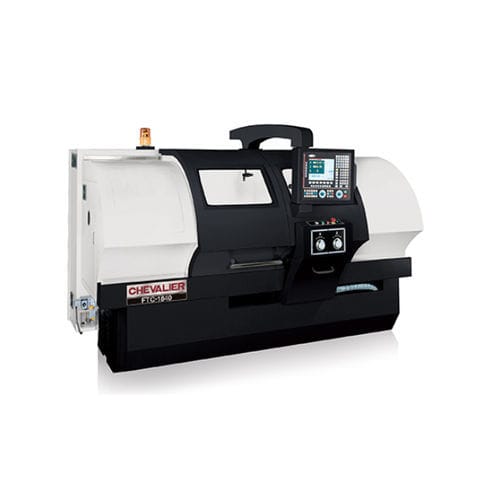

CNC turning machine FCL-1840

heavy-dutyhigh-precisionmulti-function

A Lathe with Digital Readout. A Lathe with Powerfeed and Jog Modes. A Lathe with Teach Mode for CNC Turning. A Lathe with Fully CNC Capability Operation. Simple and complex parts can be turned more efficiently by utilizing manual, teach or CNC modes or combining these modes. All models are equipped with a frequency drive or servo drive. Therefore, spindle speeds and feedrate are infinitely variable. Also, the spindle speeds will automatically adjust to varying diameters keeping constant surface speed, resulting in higher quality parts and longer tool life. Threads tapers and contours are performed faster and more efficiently while eliminating manual set-ups. Radial and spherical surfaces can be turned easily without using special tools or attachments. Programming is also made easier through using canned cycles which eliminate tool-path programming by automatically figuring rough and finish passes, (tool compensation is automatic). Specification FAGOR, SIEMENS and FANUC Controls Flat Bed Lathe Manual, Conversation and CNC Operation Heavy-Duty Headstock Hardened and Ground Guide Ways Swing Over Bed: up to 1,000mm (40") Transmission: 2-Speed Gearbox Chuck Size: up to 800mm (32") Optional Follow rest. Quick change toolpost. H4 electric turret. 20x20mm(18 Series)/ 25x25mm (21/25/25 Series). 3-Jaw scroll chuck (manual). 4-Jaw scroll chuck (manual). V8 Hydraulic vertical turret. 20x20mm(18 Series). 25x25mm (21/25/25 Series). Hydraulic scroll chuck system. Face plate. Live center (MT6#). SAUTER turret. (20x20mm18 Series)/ (25x25mm 21/25/25 Series). Chip conveyer. Hydraulic tailstock. SIEMENS 810D control.
