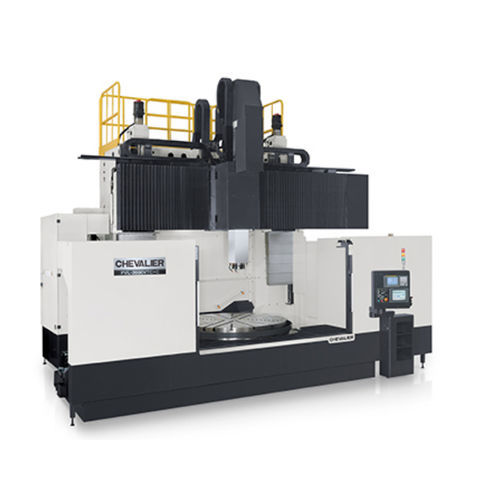

CNC turning machine FVL series

verticalrotating table48 tools

A patented coupling type clamping system along with 8 hydraulic locking pins keep the tool in place during heavy stock removal. When in use, the turning tool holder a 0.5mm space between spindle taper and tool taper, eliminating load stress on ram spindle bearings and substantially prolonging spindle life. Programmable ±100mm Y axis design is ideally suited for slot milling and multi-task machining applications. The rotary table is driven by powerful spindle motor with ZF gearbox, for low speed machining with high torque or high speed machining for fine finishing. Specification FANUC or SIEMENS Control Box Way Structure Max. Weight: up to 13,600kg (30,000 lbs.) Transmission: 2-Speed Gearbox Live Tooling, C-Axis and Y-Axis Available Grinding Attachment Available Milling and grinding function available Optional Siemens 840D controller. Automatic grinding function. ZF gearbox for milling spindle. Linear scales for X,Z axis. Automatic tool length measurement. Workpiece measurement. 70,50,or 20 bar coolant through spindle(CTS). Cartridge type filter system for CTS. Paper type filter system for CTS. Centrifuge type filter system for CTS. Chiller for coolant system. 3-jaw hydraulic chuck. 4-jaw independent chuck. 32T tools magazine. Workpiece cleaning gun(air). Workpiece cleaning gun(water). Operator platform. Turning tool holders for VTC+CY: OD toolholder / ID boring bar / OD boring bar. Rotary tool holders for VTC+CY: Collet chuck holder (tapping) Collet chuck holder (drilling) Weldon chuck holder (with two coolant channels) Modular boring head Face milling holder. Grinding tools.
