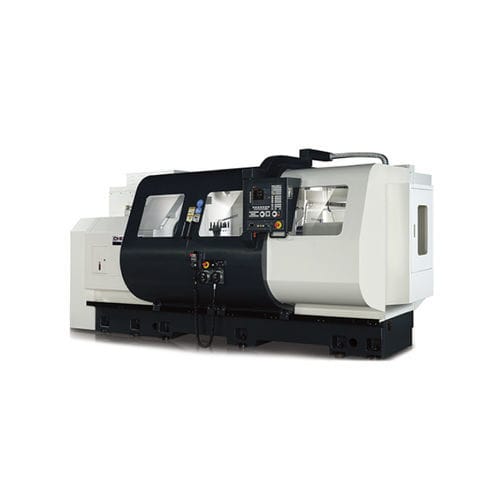

CNC turning machine FCL-4080heavy-dutyfor aluminumhigh-speed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Applications
- heavy-duty, for aluminum
- Performance
- high-speed, high-rigidity
- Other characteristics
- multi-function
- Diameter
800 mm
(31.5 in)- Maximum cutting length
4,000 mm
(157 in)- Bar capacity
150 mm
(6 in)- Nominal power
40 ch
(40 hp)
Description
Gang- type tool selection, which shorts tools changing time, and improve working efficiency.
Front moving coolant tray and rear/side chips conveyor make the footprint of the machine smaller
User-friendly operation design.
Specification
FAGOR, SIEMENS and FANUC Controls
Flat Bed Lathe
Manual, Conversation and CNC Operation
Heavy-Duty Headstock
Hardened and Ground Guide Ways
Swing Over Bed: up to 1,000mm (40")
Transmission: 2-Speed Gearbox
Chuck Size: up to 800mm (32")
Optional
Follow rest.
Quick change toolpost.
H4 hydraulic turret.
H6 hydraulic horizontal turret.
V8 hydraulic vertical turret.
Steady rest(large) 20"(500)mm.
3-Jaw scroll chuck(manual).
4-Jaw scroll chuck(manual).
Hydraulic scroll chuck system.
Face plate.
Live center(MT6#).
SUTER turret(7/ 8"x7/ 8" or 185mm x 185mm).
Chip conveyer.
5° positioning device.
Hydraulic tailstock.
SIEMENS 810D control.
Fully enclosed splash guard.
