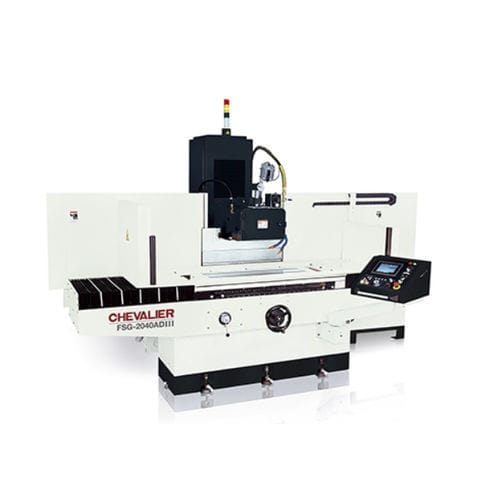

Programmable controlled grinding machine.
Precision spindle and rigid elevating elevating guideways.
Automatic wheel dressing with compensation (opt.).
Completely supported guideways .
Rigid construction.
Crossfeed stroke setting.
AC servo vertical drive .
Crossfeed speed control.
Specification
Touch Screen Monitor
Touch Screen Monitor
Table Size (W x L): up to 600 x 3,000mm (24" x 120")
Auto Dressing and Compensation (Optional)
Elevation is Driven by Servo Motor
Precisely Scraped Turcite-B on X axis and Z-Axis
Spindle Power: up to 15HP, Greater Spindle HP Available
Optional
Machine Lamp.
Diamond Dresser.
Wheel Flange.
Electromagnetic Chuck.
Parallel Dressing Attachment (Hydraulic Type).
Overwheel Parallel Dresser With Automatic Dress Compensation.
Wheelhead Mounted Automatic Rotary Diamond Dresser With Auto Wheel Dressing Compensation.
Balancing Stand With Levelling Bubble/ Balancing Stand (Roller type).
Coolant System With Auto Paper Feeding Device (With 1 Roll Of Paper).
Coolant System With Auto Paper Feeding Device & Magnetic Separator (With 1 Roll Of Paper).
Water Baffle.
Chuck Controller.
Spindle Motor.
Crossfeed Ballscrew.
Hydraulic Temperature Regulator.
Frequency Converter.
