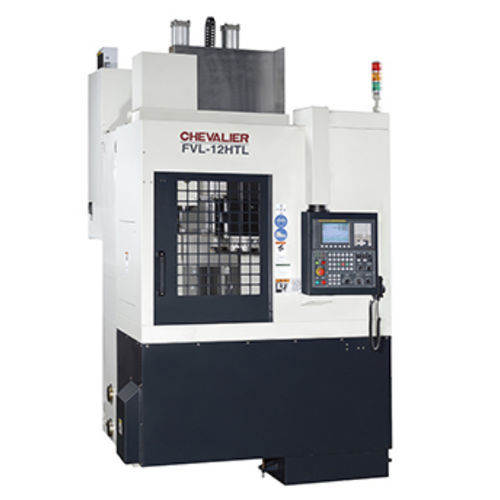

CNC turning center FVL-12HTL

vertical2-axisdouble-turret

-Easy loading and unloading of workpieces. -Minimum clamping required because the workpiece weight sets and holds the part in place. No more workppiece warpage caused by hard clamping. -Avallable with gang type, single turret or double turret tooling configuration for mixed volume production. -It is ideal for high speed cutting on materials like steel, cooper, aluminum and casting. The machining accuracy of the workpiece is high. -Optional C axis and live tooling VDI turret can perform multiple operations in one setup. -Heavy duty spindle uses large diameter NN double-row cylindrical bearings, delivering runout accuracy within 0.0001" (0.003mm) . -Relatively small footpring saves valuable work space - perfect for outomation or cell manufacturing. Specification FANUC Control Box Way Chuck Size: up to 600mm (24") Turret No.: up to 2 sets Tailstock Version Available Optional 3 jaw hydraulic chuck (10" for FVL-8 series/12", 15" for FVL-12 series/ 18"/ 21" for FVL-20 series, 18"/ 21"/ 24" for FVL-24 series). V.D.I power turret (for FVL-8MC/ FVL-12MC/ FVL-20MC/ FVL-24MC). V.D.I power tooling (for FVL-8MC/ FVL-12MC/ FVL-20MC/ FVL-24MC). Spindle horse power 7.5/ 11 (α8i), 30/ 37 (α30i), 45/55 (α50), 15/ 18.5 (αp30), 18.5/ 22 ( (αp40). 2-speed ZF gearbox. Air blast. Coolant through tool. Dust collector. Automation devices. Other CNC controls. Chop cart Combination type chip conveyor for aluminum wheel. Spindle chiller. Sling crane. Different color. CE mark. Transformer for different voltage. High efficiency oil mist collector.
