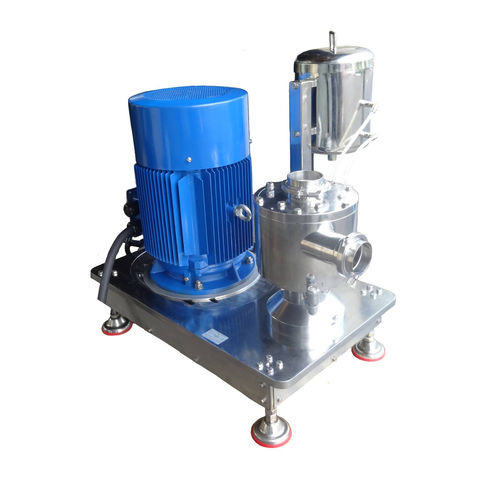

Turbine mixer MO-03

batchsolidvertical

- Stainless-steel construction - The parts in contact with the product are in 316L type stainless-steel - Explosion-proof as specified in the ATEX directive can be supplied - Maximum working pressure: 10 bar - Mechanical seals in widia - Water-cooled mechanical seals (water drains to waste) - Inlet/outlet diameter: 100 mm - Speed of rotation: 4000 rpm - Working temperature range from –10° C to +90° C - Vertical pressure equivalent to: 6 m (without pump) - 5 rows of stators - 5 rows of rotors with a central fan - Different types of inlets/outlets on request - Cone for product injection made from 316L type stainless-steel (capacity: 140 litres) - Complete mixing with product recirculation - In specific applications the unit can be used “in-line” without recirculation - A stainless-steel base with adjustable stud supports connects the motor and homogenizer APPLICATION The range of mixers-homogenizers is used to convert solids to liquids. The ideal food-industry solution for adding protein, producing syrups, preparing brines, honey, jams, chocolate, cream, mayonnaise, purée, fruit concentrates, citrus juices and fruit pulp, tomato concentrate, sauces, homogenized food, various pâtés, condensed-milk with sugar, most cereals (dry or emulsified in water). Additionally, it is the ideal blending solution for solid/liquids in the pharmaceutical, cosmetic and chemical industries.
