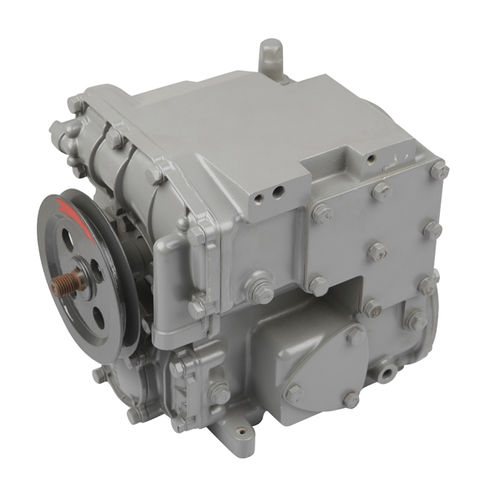

Gear pump TDW-BT90oilfor dieselfor gasoline
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Fluid
- oil, for diesel, for gasoline, air
- Operation
- diesel
- Mobility
- stationary
- Domain
- industrial
- Applications
- outlet
- Other characteristics
- suction, filter
- Flow
Min.: 45 l/min
(11.88774 us gal/min)Max.: 90 l/min
(23.77548 us gal/min)- Pressure
0.06 MPa, 0.3 MPa
- Power
0.75 kW
(1.02 hp)- Length
360 mm
(14 in)- Width
320 mm
(12.6 in)- Height
300 mm
(11.81 in)- Weight
17 kg
(37.48 lb)
Description
The BT90 pump is applicable to gasoline, kerosene, diesel and some compatible fuel. Its inside construction includes Air Separator, Check Valve, By-pass Valve, Float Valve, Overflow Prevention Valve, Inlet and Outlet Filter, etc.
Features and Benefits:
ØSmall Volume, Strong Output Capability
ØTwice Filtration - There is a filter in each the suction side and outlet side of the pump, which makes it more effective to remove the impurities.
ØAir Separator - With the function of the float to separate the air from oil automatically.Ø 100% Factory Tested.
