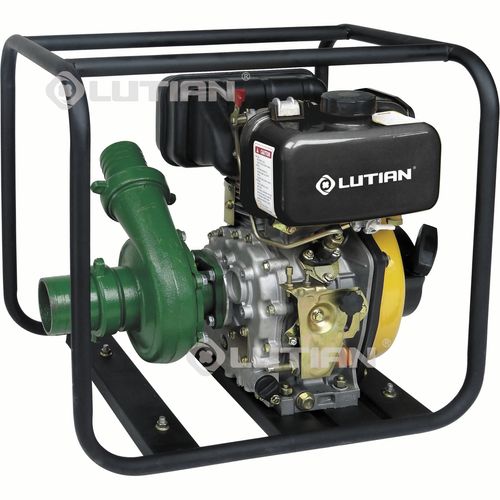

Plunger pump LT series waterdiesel engineindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- plunger
- Fluid
- water
- Operation
- diesel engine
- Domain
- industrial
- Applications
- discharge
- Other characteristics
- suction
- Flow
42 m³/h, 75 m³/h
(1,483.216 ft³/h, 2,648.6 ft³/h)
Description
PARAMETERS
Model
LT65-55
LT80-65
Suction, discharge port dia (inch)
2.5/2.0
3.0/2.5
Engine Type
Single-cylinder,4-stroke air-cooled diesel engine
Max. Capacity (m³/h)
75
42
Pump Lift (m)
22
30
Max. Suction Head (m)
7
7.5
Net Weight (kg)
41
47
Dimension (LxWxH)(mm)
535*420*510
560*455*560
Engine Model
LT170FD
LT178F
Rated Output [kw(HP
2.5kw (3.4HP)
3.8kW (5.2HP)
Displacement (cc)
211
296
Rated Speed (rmp)
3000
3600
