Gate valve

with handwheelfor waterfor chemical products

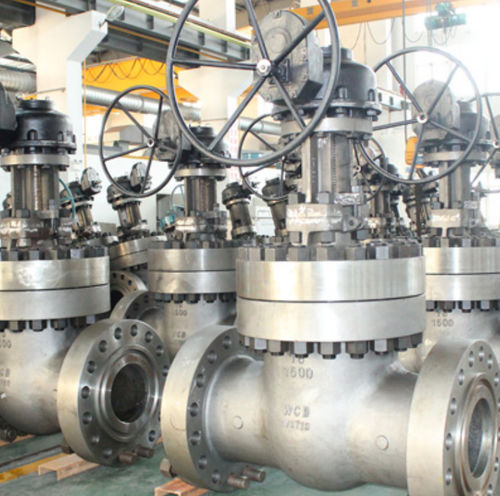

Full Port Gate Valve Manufacturer: Cast Steel Gate Valves, Full Port, API 600, ASME B16.34, 1-1/2-48 Inch, Class 150-2500 LB, FF, RF, RTJ, ISO 5211, Carbon Steel, Stainless Steel. Cast Steel Gate Valve In-house testing procedure has been developed and is periodically performed to ensure that standard product design and manufacturing Med Cast Steel Gate Valves are designed and manufactured to ensure leakage of less than 100 ppm (parts per million) of volatile organic compounds. Extensive baseline laboratory testing (static and cycle testing) has been performed establishing critical design parameters necessary to achieve low emission sealing in the Med stem packing seal area and in the bonnet gasket sealing area, In-house testing procedure has been developed and is periodically performed to ensure that standard product design and manufacturing criteria consistently result in the Med Cast Steel Gate Valve meeting a maximum of 100 ppm VOC leakage prior to shipment. Med Cast Steel Gate Valves are with main Features as below: Pressure Ratings: ANSI Class 150-2500 LB. Standards compliance: API 600, ASME B16.34 or equivalents. Materials: Cast Carbon Steel, Cast Stainless Steel, Cast Duplex or Other Specials. Ends Connections: Flanged (FF, RF, RTJ) to international standards. OS & Y, Outside Stem and Yoke. Metal-sealed (API Trim CL1, CL5, CL8, CL10 and etc.). Optional Locking Device or Stem Extension.
