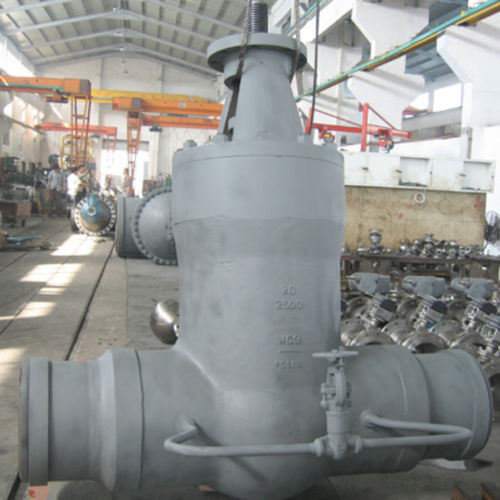

Gate valve

pneumaticelectrichydraulic

Pressure Seal Gate Valve Provider: Pressure Seal Bonnet Gate Valves, API 600, API 602, ASME B16.34, DIN 3202, 1/2-24 Inch, 600-2500 LB, PN100-PN420, Cast or Forged Steel. Med Pressure Seal Gate valves are intended for high pressure, high-temperature applications in all types of fluid except where severe coking is a factor. The design and material selections provide excellent service in steam-generation stations, industrial chemical plants and thermal power plants. Most Pressure Sealed Gate Valves are offered in Cast Steel and Forged Steel body designs. These options make the Med Pressure Seal product line an excellent choice for users with various application requirements. Med Pressure Seal Gate Valves provide the most efficient flow passage and sealing features possible, resulting in significant weight savings, easy installation and in-line maintenance. supplied with standard features as below: Standards Compliance: Design & Manufactured to API 600, API 602, ASME B16.34 or DIN 3202, P.T Ratings to ASME B16.34. Face to Face dimensions: ASME B16.10. Butt-weld Ends: ASME B16.25. Socket-weld Ends: ASME B16.11. Valves Marking: MSS SP-25. Inspect & Tested: API 598. Structures in Pressure Sealed Union Cover. Ends Connections in Flange, Threaded, Welded Ends and grooved. Body Materials available in Cast or Forged Carbon Steel, Stainless Steel, Duplex Steel, Special Materials etc. Trim Materials available in 13%Cr, ASTM A182 F11, ASTM A182 F22, SS 304, SS 304L, SS 316, SS 316L and other specials. Actuations can be equipped with Handwheel, Gear Device, Electric, Pneumatic or Hydraulic Actuators. Optional Bypass system, Live Loading Packing & O-ring Seal available upon request.
