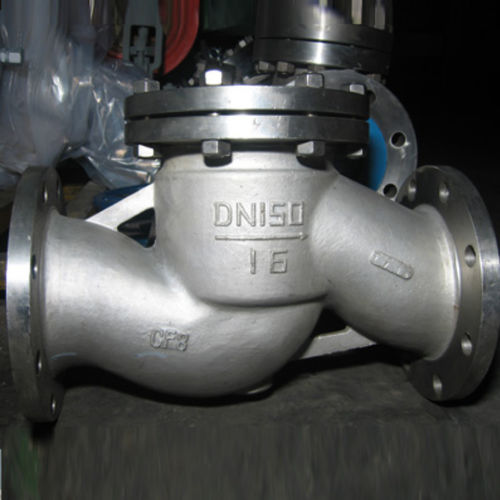

Lift check valve pistonthreadedflange
Add to favorites
Compare this product
Characteristics
- Type
- lift, piston
- Body
- threaded, flange
- Applications
- for the chemical industry, for water, for the petrochemical industry
- Material
- stainless steel, steel, bronze, alloy, carbon steel
- Other characteristics
- standard, seat
- DN
Max.: 12 in
Min.: 0.5 in
Description
API 6D Lift Check Valve Manufacturer: Lift Type Check Valves, BS 1868, API 6D, BS 5352, ISO 15761, 1/2-12 Inch, Class 150-2500 LB, BW, SW, Threaded End.
Lift check valve, Piston type disc, bolted bonnet or pressure sealed bonnet, threaded or welded seat or integral seat, etc.
Description
Design standard: BS 1868, API 6D, BS 5352, ISO 15761.
Flange connection dimension: ASME B16.5, ASME B16.47, MSS SP-44.
Butt welding connection dimension: ASME B16.25.
Socket welding end dimension: ASME B16.11.
Thread end dimension: ASME B1.20.1.
Face-to-face dimension: ASME B16.10, Manuf. Std.
Pressure-Temperature Rating: ASME B16.34.
Pressure test standard: API 598, ASME B16.34.
Product range
Rating: ANSI Class 150-2500 LB.
Trim: API 600 or customized per client's requirements.
Operation: Automatic without actuator.
