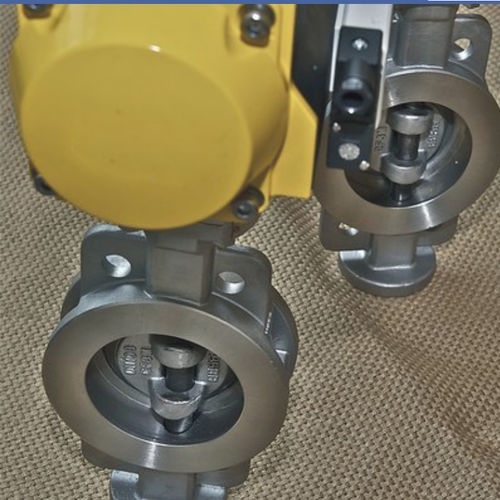

Butterfly valve manualpneumaticelectric
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- manual, pneumatic, electric, electro-hydraulic, hydraulic
- Function
- for control, shut-off
- Media
- for water, for chemical products
- Body
- wafer, soft-seat, stainless steel, carbon steel, bronze, aluminium, Hastelloy®, titanium
- Applications
- for the chemical industry, for the petroleum industry, for shipbuilding, for water treatment, power line
- Other characteristics
- ISO, ANSI, DIN, high-performance
- DN
Min.: 50 mm
(1.969 in)Max.: 3,500 mm
(137.795 in)- Temperature
Min.: 0 °C
(32 °F)Max.: 600 °C
(1,112 °F)
Description
High Performance Wafer Butterfly Valve Fabricator: High Performance Butterfly Valves, Wafer Type, 2-140 Inch, 50-3500mm, 150-1500 LB, CS, SS, Aluminium Bronze.
The Med Wafer High-Performance Butterfly Valves provide accurate control of high capacity, moderate pressure drop services. The double offset design provides an approximately equal percentage flow characteristic and facilitates tight class VI shut-off, resilient-seated construction or class IV with metal seals.
The Med High-Performance valves are available in Soft Seat (Up to 200°C depending on size and pressure), and Metal Seat (Up to 600°C) variants (fire safe on application).
Med Wafer High-Performance Butterfly Valves are with main Features as below:
ISO 5752, BS 5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN 3202.
Pressure Ratings: ANSI Class 150-1500 LB.
Optional Seat rings: Resilient RPTFE, Metal seated INCONEL (Fire safe on application).
