Hydraulic strainer

stainless steelflange

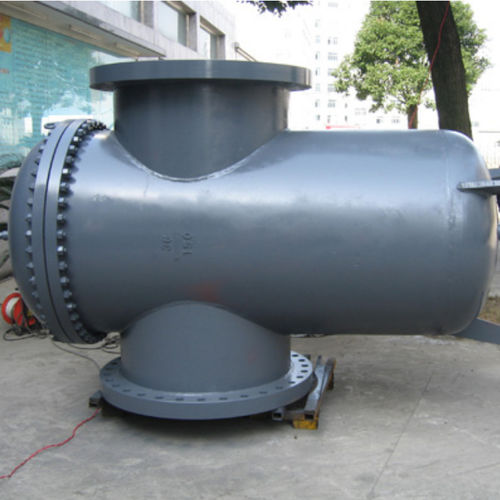

ASME B16.34 Basket Strainer Provider: Basket Type Pipe Strainers, 2-48 Inch, Class 150-600 LB, ASME B16.34, Stainless Steel Screen with Drain Plug, Bolted Cover. Fabricated Basket Strainer, Basket type, Bolted cover, stainless steel screen with drain plug, etc. Standard Design standard: ASME B16.34. Flange connection dimension: ASME B16.5, ASME B16.47 A, ASME B16.47 B series. Butt welding connection dimension: ASME B16.25. Face-to-face dimension: ASME B16.10, EN 558. Pressure-Temperature Rating: ASME B16.34. Pressure Test standard: API 598, BS 6755, ASME B16.34. Product range Size: 2-48 Inch. Rating: ANSI Class 150-600 LB. Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel. Trim: Per API 600.
