Swing check valve for waterDINweld
Add to favorites
Compare this product
Characteristics
- Type
- swing
- Fluid
- for water
- Connexion
- DIN
- Body
- weld
- Applications
- for the chemical industry, for the petrochemical industry
- Material
- stainless steel, carbon steel
- Other characteristics
- standard
- DN
200 mm
(7.874 in)- Pressure
160 bar
(2,320.6 psi)- Temperature
Min.: -29 °C
(-20 °F)Max.: 350 °C
(662 °F)
Description

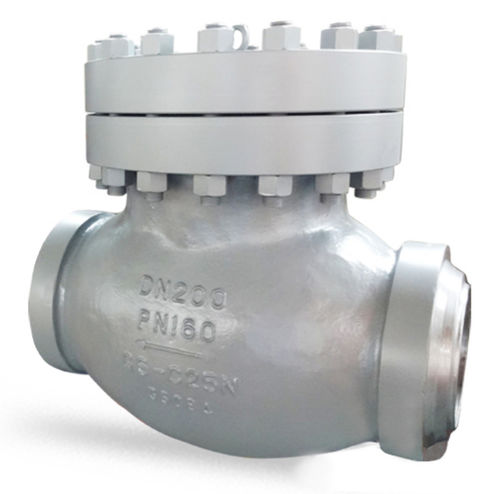

GS-C25N Swing Check Valve Manufacturer: Swing Type Check Valves, DN200, PN160, BW, DIN 3356, BW End, DIN GS-C25N, Test EN 12266.1.
DIN Swing Check Valve, DN200, PN160, GS-C25N, BW, DIN 3356, Butt Welded End, FF DIN 3202, EN 12266.1.
Valve Description
Design standard: DIN 3356.
Body material: GS-C25N.
End connection: BW.
Face to face: DIN 3202.
Test and inspection: EN 12266.1.
Product Range
Body material: Low-Temperature Carbon Steel, Carbon Steel, Stainless Steel.
