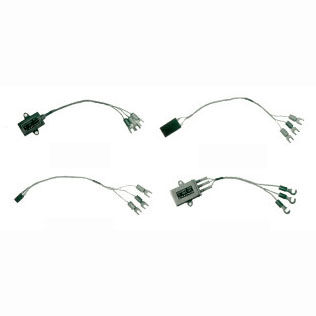

Platinum resistive temperature sensor R060 Series

for surface temperature measurementhigh-temperature3-wire

R060 is a surface temperature measurement sensor using platinum resistant element for detecting element. It gives minimum heat disturbance to measuring object surface. There are general purpose type, flexible type, and high temperature measurement type etc. available depending on the measurement condition. - General purpose type A platinum resistant element is completely molded with silicone rubber and put in the brass case. It has excellent performance on moisture proof and impact resistance. - Flexible type A platinum resistant element is molded with silicone rubber, so it has excellent performance on flexibility. This very thin type sensor can measure the temperature in a range of -50˚C to 250˚C with high accuracy. - High temperature measurement type A platinum resistant element is enclosed by brass case, and alumina porcelain is used for lead wire fixtures to provide heat-resistant structure. This sensor can measure the temperature up to 500˚C. - Small reinforced type A platinum resistant element is embedded in copper disc with good thermal conductivity and has excellent mechanical strength. In addition, lead wire is fixed with heat resistant resin, so it is tough against disconnection.
