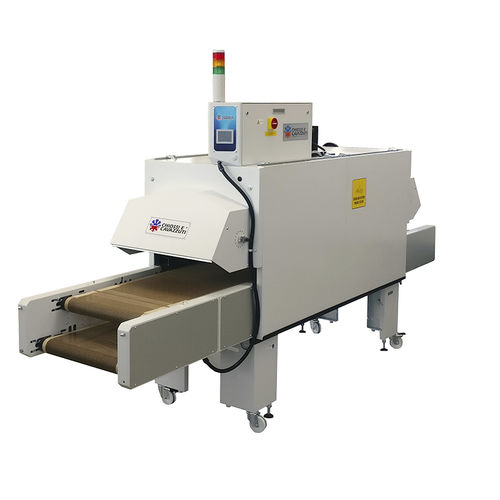

Hot air dryer ACE 600

for the textile industrycuringwith belt conveyor

The Tetris gamma is a new generation of dryers, built and designed with almost 40 years of experience for long lasting and high quality machines, proudly produced in Italy. • **NEW PLC** The latest Lcd control panel has an easy and interactive interface design: time and temperature control are both processed digitally for precise and fast adjustments; the automatic cooling off and shutdown can be set to suit different working necessities; dryer internal technical parameters are also displayed. The entire machine is protected with circuit breakers and thermostats to prevent electrical and heating failures: the digital control panel has also a detailed alarm history chart to improve the safety and the maintenance for extended working periods. ACE 600 PRODUCTION DATA: Water-based Digital Ink – A4 print size on T-shirt – Data may change according to fabric material, drying area size and ink curing requirements. Curing Area: 2000×600 mm 3 minutes curing time: 100 pieces/h 4 minutes curing time: 70 pieces/h 5 minutes curing time: 60 pieces/h 6 minutes curing time: 50 pieces/h The Dryer ACE 600 is the perfect match with 2 KORNIT BREEZE, which has an output up to 32 light and 25 dark garments per hour.
