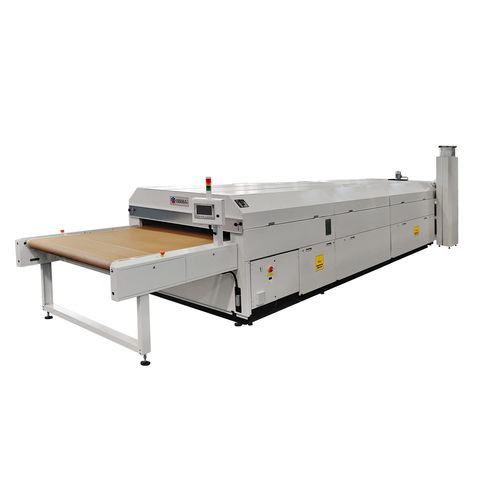

Infrared dryer GRIFF 6180

hot aircleaning

“Griff” is the tunnel dryer with the highest air circulation of its kind. • It is designed for Dtg and Screen Printing, to cure fabrics printed with water-based or Plastisol inks. • The hot air circulation is particularly accurate and use reversed blade fans, with high efficiency and low noise. • The air exchange is calibrated to expel water vapor and combustion fumes and facilitate drying. • The outflow nozzles send the air onto the product in a perpendicular and high speed way. • The temperature is regulated by a precision thermostat that drives a modulating premixed burner. • The flame is always present and its intensity varies in function of power demand. • The passage height is 130 mm, sufficient for the vast majority of products. • The two independent belt speeds version can dry simultaneously two products with different drying time. • It is possible to lift the upper section electronically to easily perform the internal cleaning of the dryer. Advantages: • new interactive interface • optional combined drying system • highest speed of hot air circulation • powerful airflow specifically designed for DTG • precise time and temperature control • low consumption and efficient burner • optional flash infrared lamps • easy maintenance operations TECHNICAL DATA VALUES Electrical requirements - 400V 3P+N+PE 4,8A | 230V 3P+PE 16A Max electrical consumption - 3,4 kW Burner power - 65 kW (max) Max temperature - 200 °C Exhaust specification - 1500 m3/h - Ø300 mm Belt width - 1750 mm | 2 x 800 mm Tunnel lenght - 6000 mm Production (light-dark) - 940 - 470 pieces/h Overall dimension (LxWxH) - 9000 x 2550 x 2000 mm Weight - 3000 kg
