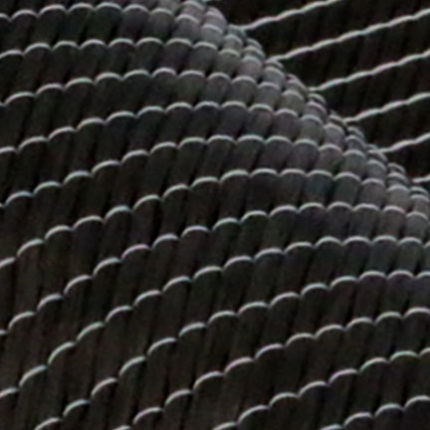

Reinforced technical fabric C-PLY™ BX 600 C2,5 50K TRW40

carbon fiberreinforcementfor composites

C-PLY BX600 C2,5 50K TRW40 is a 600 gsm biaxialcarbon NCF, +45°/-45°, 300 gsm/ply. It is made using TRW40 multi compatible resin carbon fiber. Plies are combined using a chain stitch. This reinforcement is paricularly adpated to the marine industry or parts which are resin infused. BENEFITS Gap free technology, no resin rich areas. Non Crimp Fabric, better mechanical properties. Optimization of layer construction, cost savings. Construction Total weight: 600 gsm Fibres orientation: +45°/-45° (BX) +45° : 300 gsm -45° : 300 gsm Assembly Assembly: Stitching Chain Polyester 2.5mm Conditioning Width(s): 127 cm Roll Length: 100 ml Options Powdering an epoxy binder will enhance products stability during cutting and preforming operations. The choice of a binder depends on the matrix compatibility and process conditions. Powdering weight ranges from 5 to 30 g/m² and can be adapted to customer requirements (single side, double side) and product constructions. Various Veil (PES, Glass,…) or thin Web (CoPa,…) can be heat set or stitched for Stability, Aspect or Preforming purposes. Online slitting capabilities as narrow as 14 cm (5.5’’).
