Biaxial technical fabric C-PLY™ SP 0/-45 75/75 CT3,4 12K HS

reinforcedcarbon fiberreinforcement

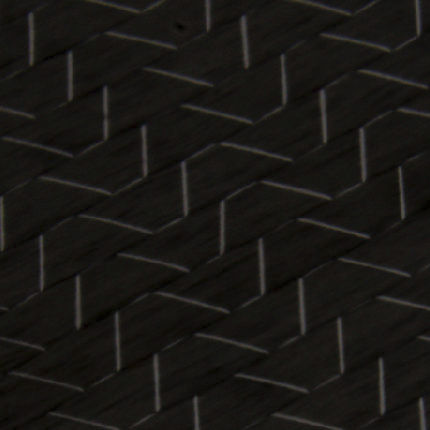

C-PLY™ SP 0/-45 75/75 CT3,4 12K HS is a 150 gsm biaxial spread-tow carbon NCF, 0/-45°, 75 gsm/ply. It is made using 12K HS carbon fiber. The anisotropic orientation ensures that use of the material weight is optimized according to the direction of the forces exerted on the part to be made. BENEFITS Gap free technology, no resin rich areas. Non Crimp Fabric, better mechanical properties. Optimization of layer construction, cost savings. Construction Total weight: 150 gsm Fibres orientation: +0°/-45° (BX) +0° : 75 gsm -45° : 75 gsm Assembly Assembly: Stitching Mix Polyester 3.4mm Conditioning Width(s): 125 cm Roll Length: 100 ml Options Powdering an epoxy binder will enhance products stability during cutting and preforming operations. The choice of a binder depends on the matrix compatibility and process conditions. Powdering weight ranges from 5 to 30 g/m² and can be adapted to customer requirements (single side, double side) and product constructions. Various Veil (PES, Glass,…) or thin Web (CoPa,…) can be heat set or stitched for Stability, Aspect or Preforming purposes. Online slitting capabilities as narrow as 14 cm (5.5’’). Other angles are possible upon request down to 22,5°.
