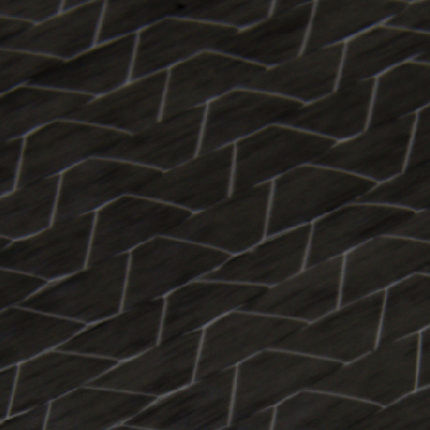

Unidirectional technical fabric C-PLY™ SP U100S5 CT3,4 12K HS

carbon fiberreinforcementfor composites

C-PLY™ SP U100S5 CT3,4 12K HS is a 100 gsm unidirectional spread-tow carbon NCF, 0°. It is made using 12K HS carbon fiber. The fabric is stabilized at 90° so that it is stable for handling. Construction Total weight: 100 gsm Fibres orientation: UD 0°: 100 gsm Additionnal Treatment(s): Stabilization Additionnal Treatment Weight: 10 gsm Assembly Assembly: Stitching Mix Polyester 3.4mm Conditioning Width(s): 125 cm Roll Length: 200 ml Options Epoxy binder powdering: Powdering an epoxy binder will enhance products stability during cutting and preforming operations. The choice of a binder depends on the matrix compatibility and process conditions. Powdering weight ranges from 5 to 30g/m² and can be adapted to customer requirements (single side, double side) and product constructions. Veil and web: Various Veil (PES, Glass,…) or thin Web (CoPa,…) can be heat set or stitched for Stability, Aspect or Preforming purposes. Slitting services: Online slitting capabilities as narrow as 14 cm (5.5’’).
