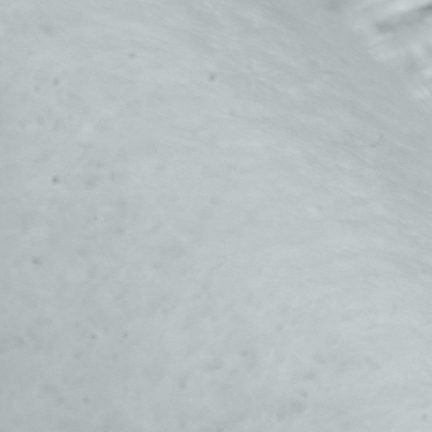

Reinforced technical fabric VOLUMAT™ 240P/200 (4) ASPECT

glassreinforcementfor composites

VOLUMAT™ 240P/200 (4) ASPECT is a needle-punched multi-layer product comprising a 240 gsm fabric, a 200 gsm mat and a 50 gsm polyester web. VOLUMAT™ is used in pultrusion processes, most notably to manufacture large parts requiring mechanical properties. The addition of a web improves the surface appearance and/or provides a barrier that is resistant to chemicals and UV. BENEFITS Adds volume to the reinforcement to obtain thicker parts. Dedicated to parts with sharp angles, as high volume fibers of VOLUMAT™ allows optimum filling of critical areas. Woven roving brings transverse mechanical strength to finished products. Does not fray during processing which gives a better surface aspect than most of other reinforcements like CFM. Improve the surface appearance of profiles, Creates a barrier against UV or chemical attack, Saves preparation time (fabric + veil in one step). Construction Total weight: 490 gsm Fibres orientation: 0°/90° (BT) Warp Glass : 160 gsm - 2.6 ends/cm - 600 tex Weft Glass : 80 gsm - 2.5 ends/cm - 320 tex Pattern: Plain CSM1 Weight: 200 gsm Nonwowen - Type: Polyester Nonwowen - Weight: 50 gsm Assembly Assembly: Needling Transformation Process Pultrusion Conditioning Width(s): 125 cm - 120 cm cut edge Roll Length: 100 ml
