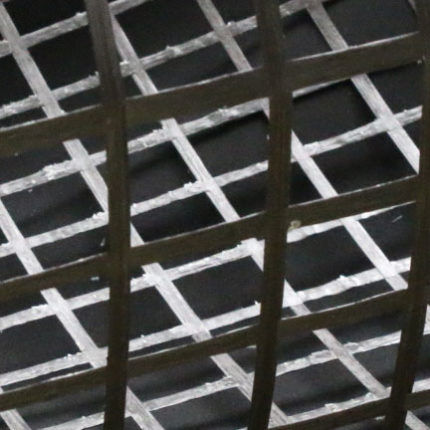

C-GRID® C50 1.80 X 1.60 is a carbon and epoxy grid used to reinforce concrete structures. It’s strand spacing 46mm X 41mm is designed to optimize strength.
BENEFIT(S)
Our strongest C-GRID® product, designed to be a shear truss in precast insulated wall panels.
BRAND(S) BENEFIT(S)
Lightweight reinforcement
Stronger than steel by weight
non-corrosive
enhances concrete strength and durability
Improves thermal performance
Improves sustainability
Construction
Total Weight: 230 gsm
Strand spacing (L x T): 46 X 41 mm / 1.8 X 1.6 inch
Properties
Grid strength (L x T): 97 X 109 kN/m / 6.67 X 7.50 kips/ft
Conditioning
Width: 241 cm
