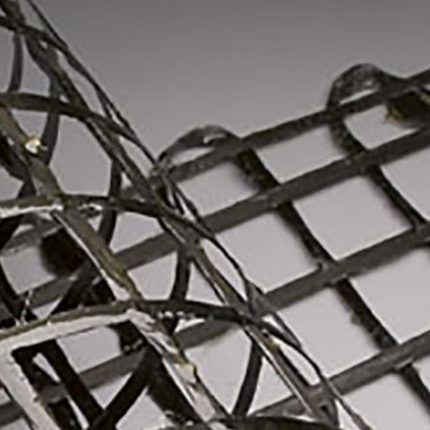

C-GRID® C50 2.36X2.36 is a carbon and epoxy grid used to reinforce concrete structures.
BENEFIT(S)
Larger apertures to ease concrete aggregate pouring during overlays.
BRAND(S) BENEFIT(S)
Lightweight reinforcement
Stronger than steel by weight
non-corrosive
enhances concrete strength and durability
Improves thermal performance
Improves sustainability
Construction
Total Weight: 165 gsm
Strand spacing (L x T): 60 X 60 mm / 2.36 X 2.36 inch
Properties
Grid strength (L x T): 74 X 74 kN/m / 5.08 X 5.08 kips/ft
Conditioning
Width: 241 cm
