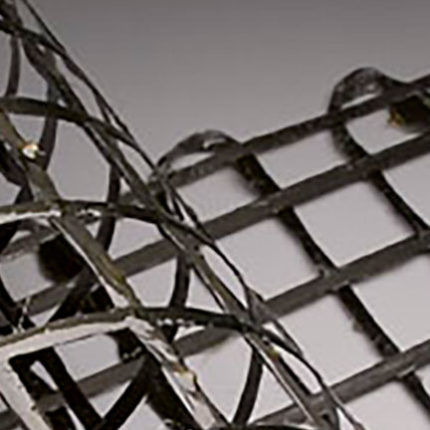

C-GRID® C50 2.95 X 2.95 is a carbon and epoxy grid using 75mm x 75mm suitable for cladding panels.
Material(s)
Scrim Material(s): Carbon
Coating : Epoxy
BENEFIT(S)
Designed for reinforcing the face of architectural cladding panels.
BRAND(S) BENEFIT(S)
Lightweight reinforcement
Stronger than steel by weight
non-corrosive
enhances concrete strength and durability
Improves thermal performance
Improves sustainability
Construction
Total Weight: 130 gsm
Strand spacing (L x T): 75 X 75 mm / 2.95 X 2.95 inch
Properties
Grid strength (L x T): 59 X 59 kN/m / 4.07 X 4.07 kips/ft
Conditioning
Width: 241 cm
