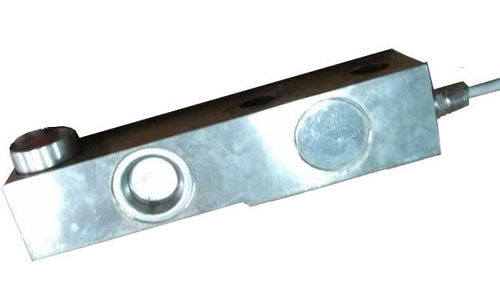

Shear beam load cell SQB-A-BC series

beam typestrain gauge

The utility model involves weighing technology. Cantilever load cell for existing electronic scales are used to adjust the height when installing the locking screw and nut straight, there is a locking nut inconvenient operation, locking is not firmly fixed, straight screw head is easy to change, causing Weighing less than repeat the error, while presenting a simple structure, before adjustment and locking from the locking securely cantilever load cell height adjustable locking device. Use our company patented product--adjustable locking device SQB-BC shear beam load cell, as electronic platform scales, hopper scales, dynamic light rail scale, etc., because the structure of the homing sensor head is good, there is no change in resistance, can guarantee reliable accuracy of the sensor, the electronic weighing scales accurate, stable, reproducible, to solve the traditional shear beam load cell (eg: SQB, SB, etc.) activities indenter position uncertainty Weighing the impact caused by the weight measurement accuracy is poor, big changes, repeated poor stability problems. SQB-BC shear beam load cell indenter height adjustable solve SB class sensor pad to increase due to the uneven ground leveling problems.
