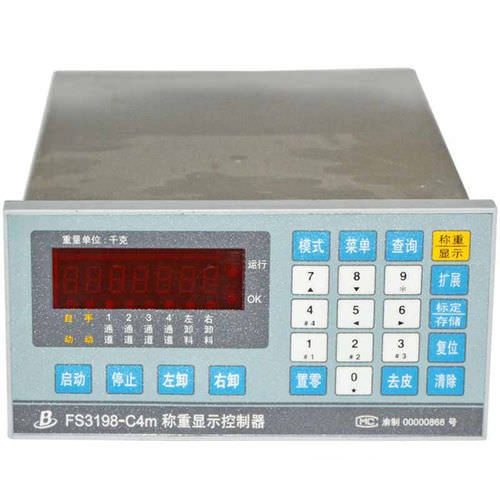

Multi-channel weighing controller FS3198-C4m series

The FS3198-C4m weighing threshold controller, can be applied to mix the material scale, weighing system or definite quantity control weighing system and so on. Because FS3198-C4m controllers threshold control function is powerful, the definite quantity weighing control scale, such as simple weighing and batching scale or hopper scale, tanker scale, can be built without the PLC or industry computer to get to be more compact, stable and reliable, simple and convenient operation, and easy to maintain. Under the manual mode, the automatic control logic is of no effect, and you can use the numeric keys to test the work states of the relay-boards outputs. This function is convenient for debugging and maintenance of weighing control system. Scheme of independent gross weight threshold control mode :mode: NOTE: Threshold values ←“~4C, Gross Weight ← GW , four relay outputs ← K1~K5 Scheme of gross weight interval threshold control mode :mode: GW=1C: K1_OFF #(light off) GW=2C: K2_OFF #(light off) GW=3C: K3_OFF #(light off) GW=4C: K4_OFF #(light off)
