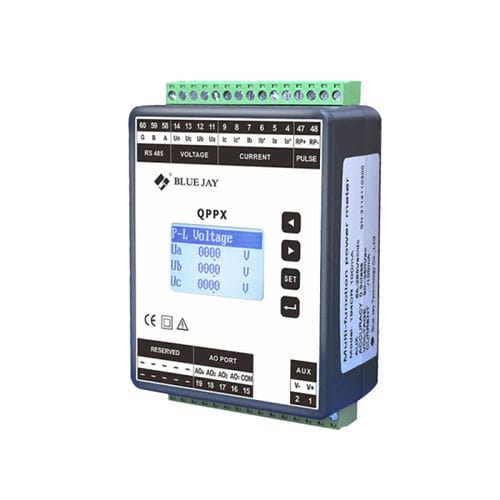

DIN rail power transducer QPPX

QPPX electrical transducer measures a wide range of electrical parameters and generates analog or digital output signals suitable for interfacing with instrumentation and control systems. Total four channel output with panel key or PC control programmable user can free to set 4 different data from max 26 electrical parameter for sampling and analog signal output. Have three channel digital inputs and optional RS485-Modbus communication functionality. Can monitor the galvanically isolated AO signal and programmed the transducer with customized SCADA software. Any of the measured parameters can be read out via the optional RS485-Modbus connection. -. Used in Three phase AC circuit -. 35mm Din rail mounting -. With keypad and LCD screen for display and configuration -. Provide voltage, current, power value in screen -. RMS measurement and output -. Provide 4 channels output, User free to programmable configuration output signal -. 1* RS485 port MODBUS-RTU for remote polling data Power Supply: AC / DC 80-265V, 45-65Hz Burned < 3VA Current Signal Input : .../ 1A or .../5 A Burned < 0.2VA Voltage Signal Input : Direct access 18~277V ac (L-N) PT secondary …/100Vac Burned < 1VA Frequency: 45~65Hz Overload capacity: 1.2 times continuous 10 times /5s for current 2 times / 2sec for voltage Standard outputs: 4~20mA/ 0-20mA programmable (0~5V / 0~10V optional) Maximum load: 10KΩ (voltage output) Ripple: <1% peak to peak Accuracy: 0.2% / 0.5% complying with IEC 688 Response time: <350ms 0-90% <500ms 0-99% Communication Port: RS485 (2/3 wires half duplex) Modbus RTU mode Protection: Panel: IP40
