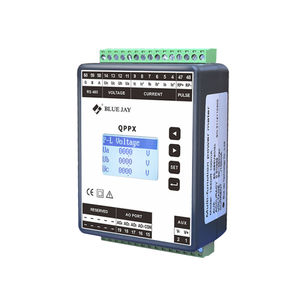

AC voltage transducer QP-A/V series

DCsingle-phaseDIN rail

This QP-A/V electrical transducer adapts microcontroller technology as the core using the latest algorithms to achieve precise measurement. QP AC voltage transducer converts an AC voltage input into a load-independent output signal. Besides, this single-phase voltage transducer has excellent temperature characteristics and good working stability. The output signal is based on the root mean square(RMS) measurement of the input signal and hence the dc voltage transducer can be used with distorted waveforms. • Used in single phase AC circuit or DC circuit • 35mm Din rail mounting or screw wall mounting • RMS measurement and output • Accuracy 0.2 class • 35mm Din rail mounting / wall mounting • Sharp size 55x75x120mm Power Supply - AC / DC 80-265V, 45-65Hz Burned < 3VA Current Signal Input - …/ 1A or …/5 A Burned < 0.2VA Voltage Signal Input - Direct access 18~277V ac (L-N) PT secondary …/100Vac DC upto 400V Burned < 1VA Frequency - 45~65Hz Overload capacity - 1.2 times continuous 10 times /5s for current 2 times / 2sec for voltage Standard outputs - 4~20mA/ 0-20mA programmable (0~5V / 0~10V optional) Maximum load - Current output: 0
